Inquire Now Contact Us| 最大径向力 | Maximum radial force | 9400(N) |
| 最大轴向力 | Maximum axial force | 4700(N) |
| 操作温度 | Operaring temp | -10℃~+90℃ |
| 平均寿命 | Average lifetime | 15000(s1) 30000(s5) (hr) |
| 噪音 | Noise | ≤63(DB) |
| 润滑油 | Lubrication | Synthetic Grease |
| 防护等级 | Protection class | IP65 |
| 安装方式 | Mounting position | Any Mounting Orientation |

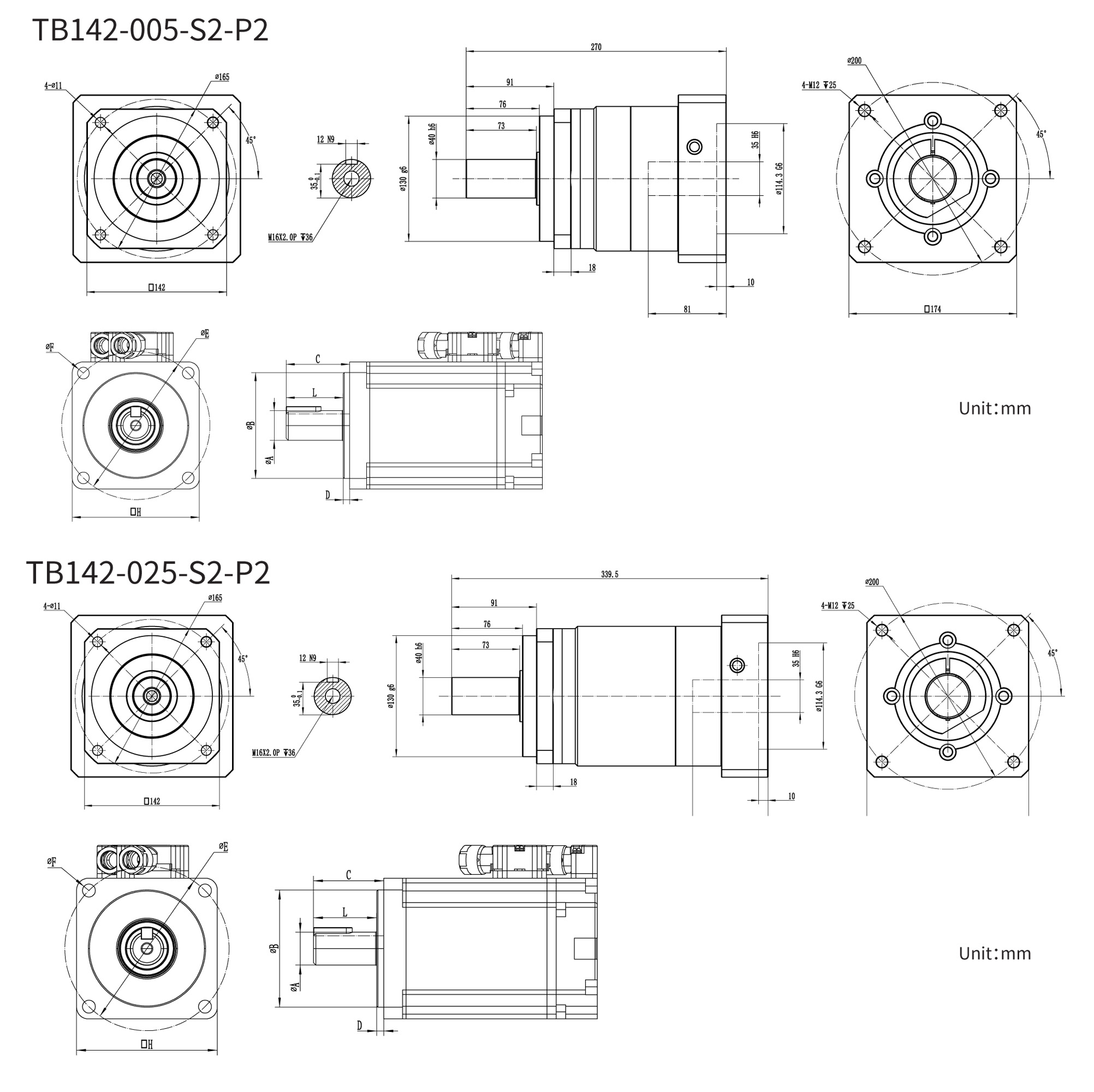

| Dimennsion | TB142 | |||
| 1-stage | 2-stage | |||
| Diameter | D1 | 165 | ||
| D2 | 11 | |||
| D3 | 185 | |||
| D4 | 130 | |||
| D6 | 40 | |||
| D7 | M16X2P | |||
| Length | L1 | 142 | ||
| L2 | 270 | 339.5 | ||
| L3 | 91 | |||
| L4 | 15 | |||
| L5 | 3 | |||
| L6 | 36 | |||
| L7 | 12 | |||
| L8 | 60 | |||
| Width | W1 | H9 | 12 | |
| Height | H1 | 43 | ||
| Interface size | C1 | 142 | ||
| C2 | 165 | |||
| C3 | 130 | |||
| C4 | M10X1.5P | |||
| C5 | ＜38 | |||
| C6 | 63 | |||
| C7 | 15 | |||
| C8 | 6 | |||
| C9 | 22.5 | |||
1.Maximum acceleration torque (T2B) = 0.6 × emergency stop torque (T2not)
2.Noise level differs by gear ratio. Reference data for ratio 10, measured 1m from reducer.TB042 gear ratio: 8
3.Rated service life applies to operation below rated input and output speed.
*We reserve the right to modify dimensions. All reducer dimensions subject to webpage confirmation.
| SPECIFICATION | ||||
| SPEC | Stage | Ratio | TB142 | |
| Rate output torque T2n(N-M) | 1 | 3 | 351 | |
| 4 | 516 | |||
| 5 | 588 | |||
| 7（8）* | 539 | |||
| 10 | 505 | |||
| 2 | 15 | 351 | ||
| 20 | 516 | |||
| 25 | 588 | |||
| 30 | 351 | |||
| 35 | 588 | |||
| 40 | 516 | |||
| 50 | 588 | |||
| 70 | 539 | |||
| 100 | 505 | |||
| Emergrncy Stop Torque T2not (N-M)(1) | 1，2 | 3~100 | 3 times the rated output torque | |
| Rate Input Speed n | rpm | 1，2 | 3~100 | 2000 |
| Max.Inptut Speed n | rpm | 1，2 | 3~100 | 3000 |
| Effciency | % | 1 | 3~100 | ≧97% |
| 2 | 15~100 | ≧95% | ||
| Standard | Stage | Ratio | TB115 |
|---|---|---|---|
| Mass Mom. of inertia.J(KG-CM^2) | 1 | 3 | 2.97 |
| 4 | 2.19 | ||
| 5 | 2.03 | ||
| 7（8）* | 1.72 | ||
| 10 | 1.56 | ||
| 2 | 15 | 2.03 | |
| 20 | 2.03 | ||
| 25 | 2.03 | ||
| 30 | 1.56 | ||
| 35 | 1.72 | ||
| 40 | 1.56 | ||
| 50 | 1.56 | ||
| 70 | 1.56 | ||
| 100 | 1.56 |
