Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 10N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 4N |

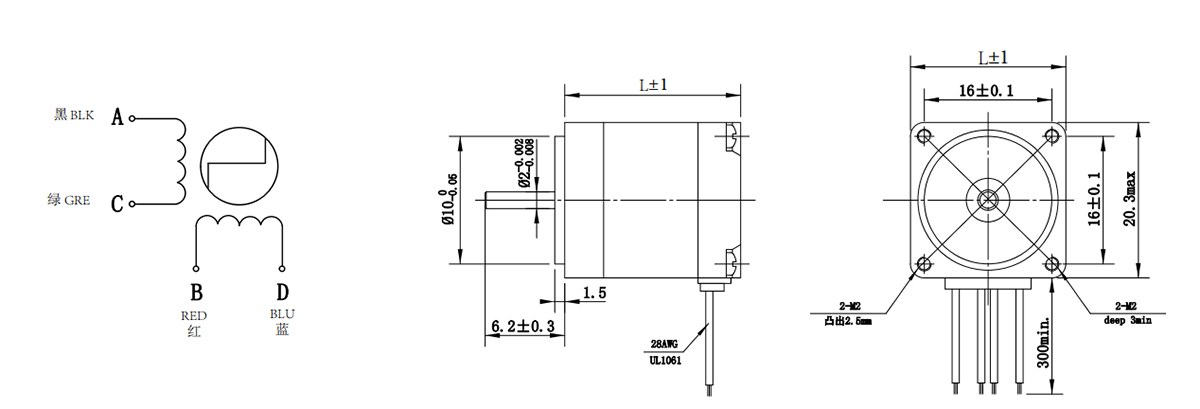

| Model | Step Angle(°/Step) | Lead Wires(NO.) | Voltage(V) | Current(A/Phase) | Resistance(Ω/Phase) | Inductance(mH/Phase) | Holding Torque(g.cm) | Body LengthL(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 22BYGH101 | 1.8 | 4 | 2.10 | 0.60 | 3.5 | 1.0 | 100 | 30 | 0.050 |
| 22BYGH301 | 1.8 | 4 | 2.60 | 0.50 | 5.2 | 1.8 | 180 | 40 | 0.051 |
| 22BYGH501 | 1.8 | 4 | 3.84 | 0.60 | 6.4 | 2.4 | 180 | 46 | 0.054 |
*The above listed are representative models. Derivative products are available for customization upon customer request.
*This product fits 22 series gear reducers.
