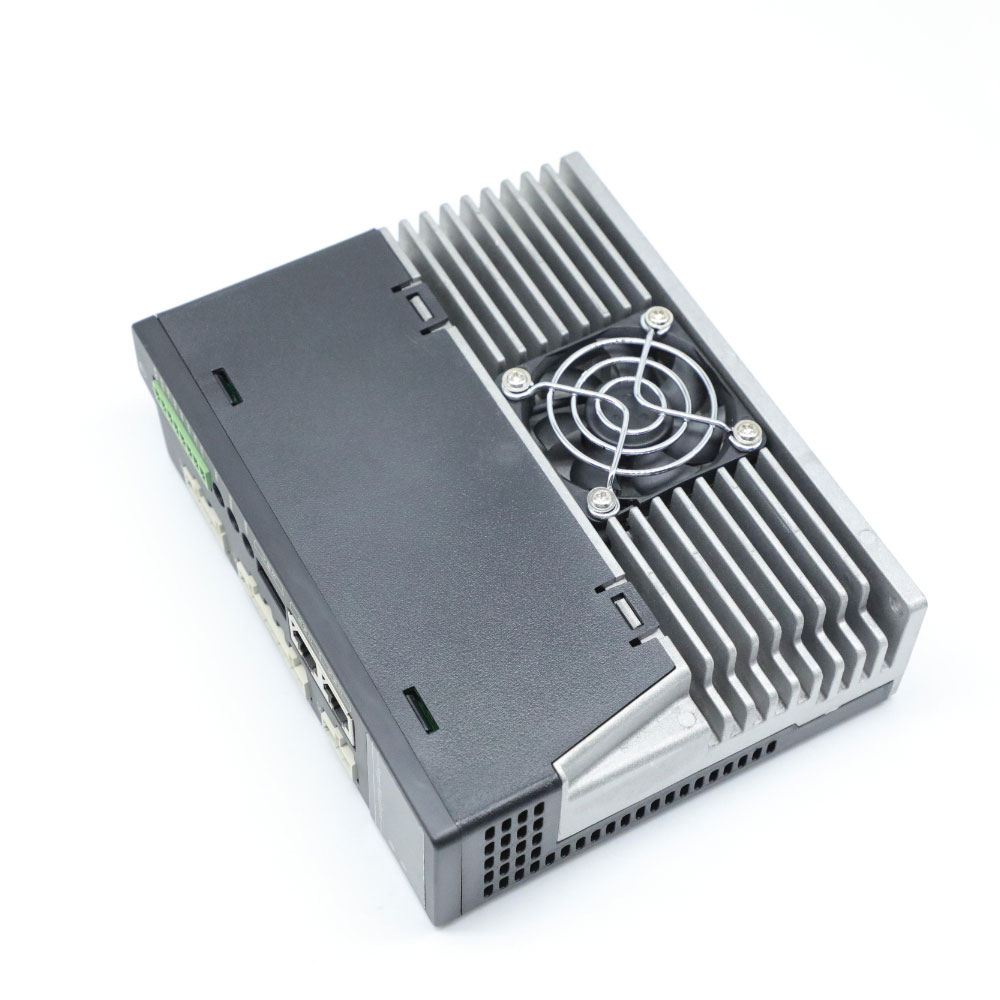

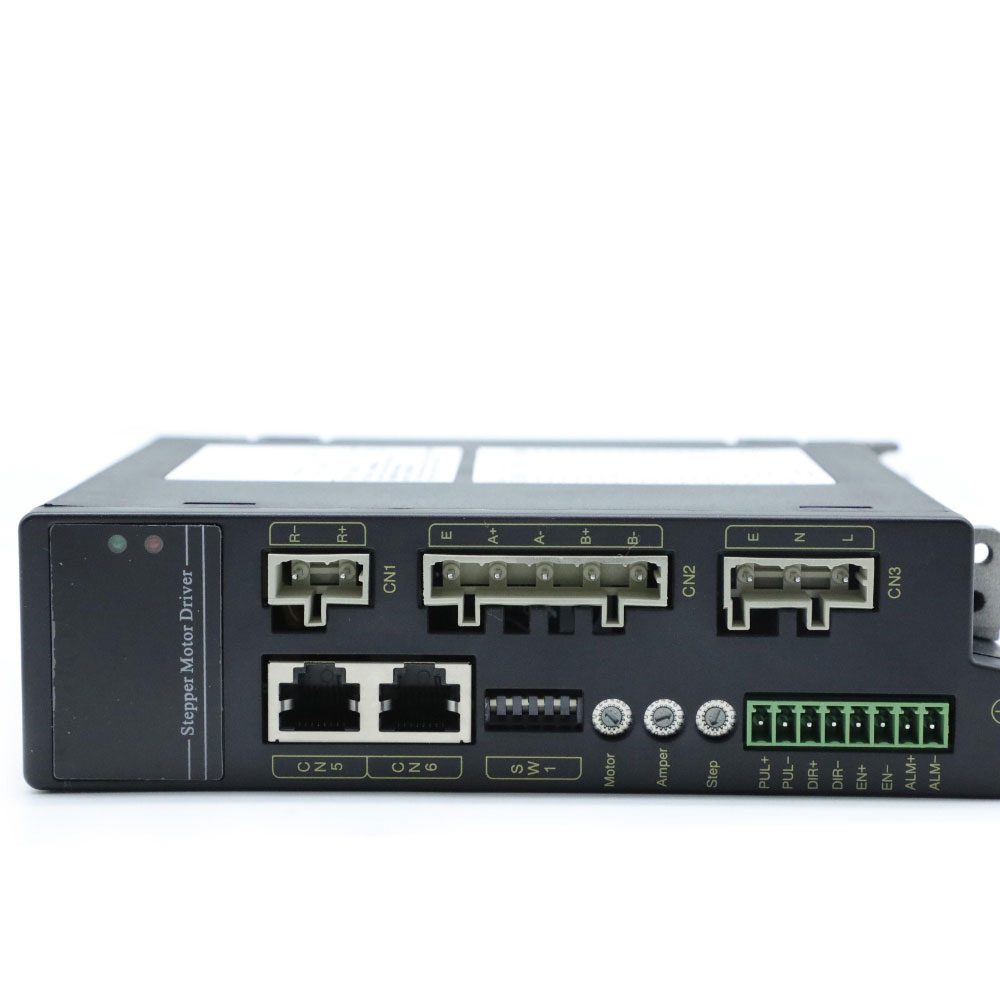

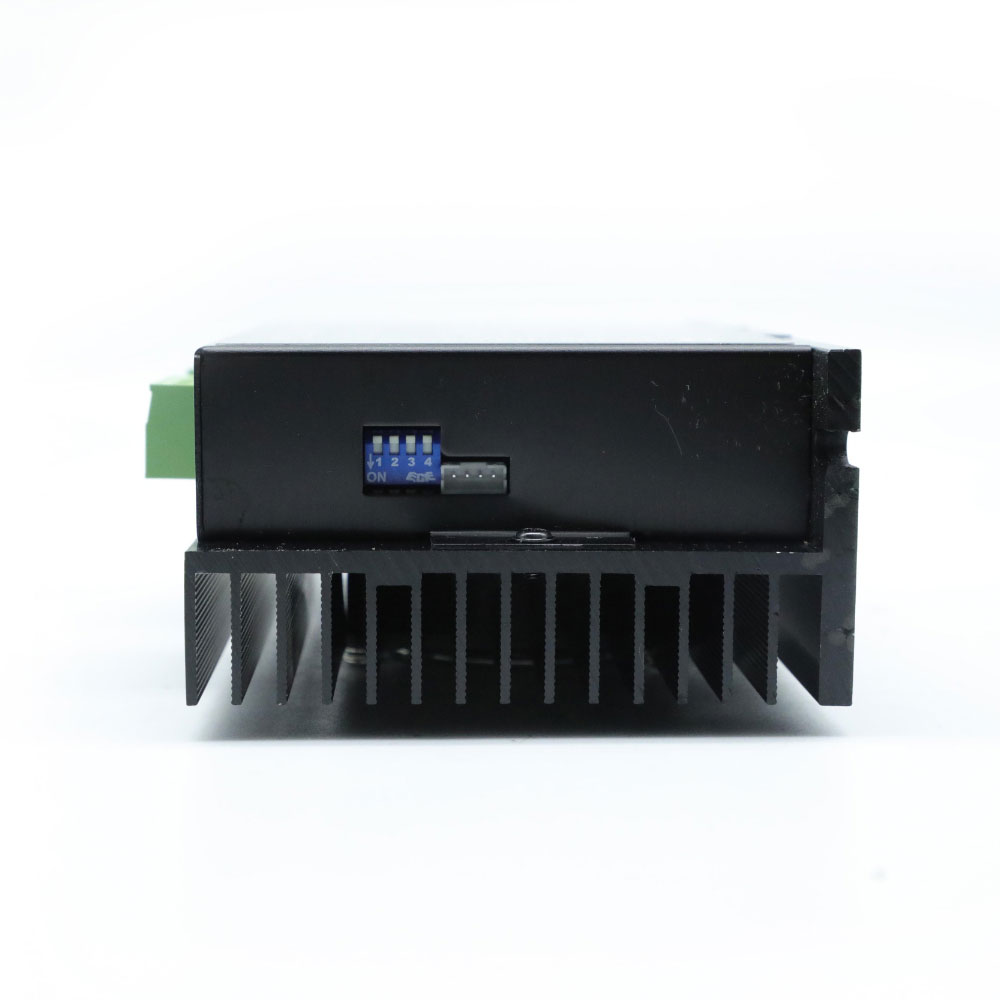

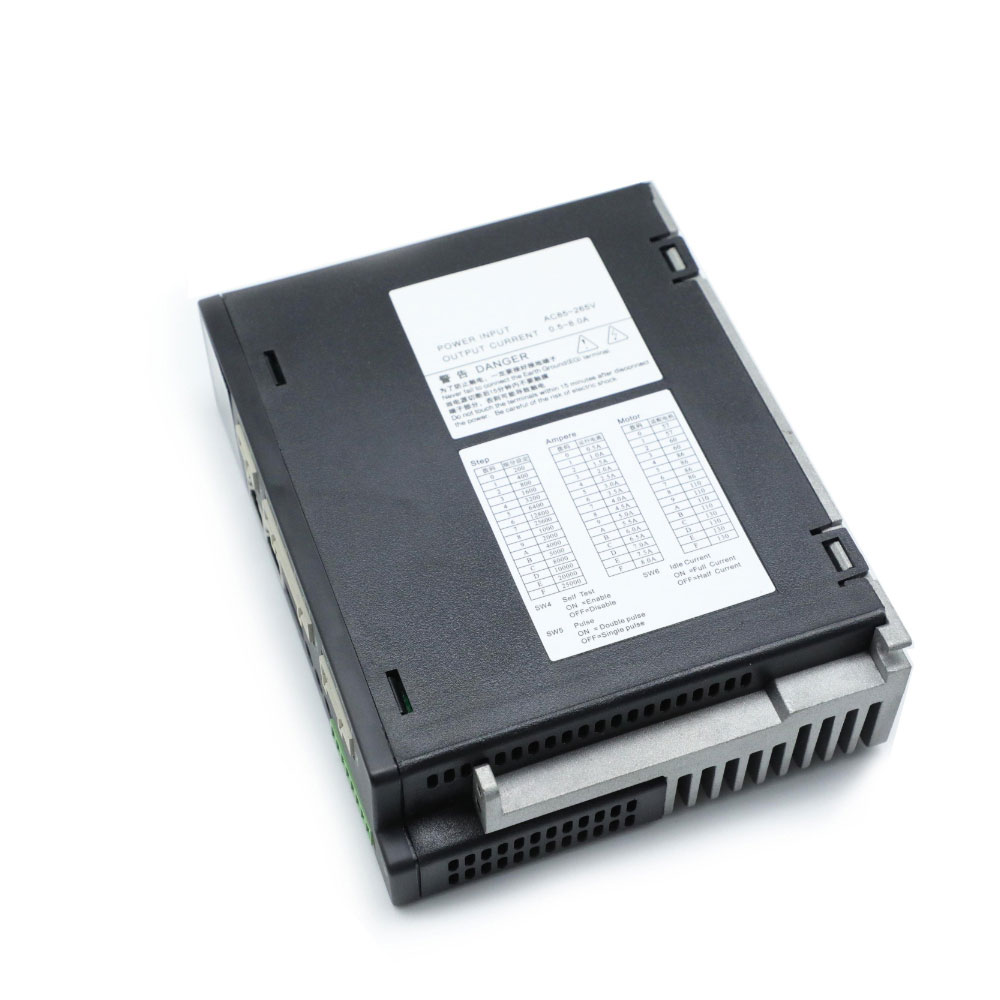

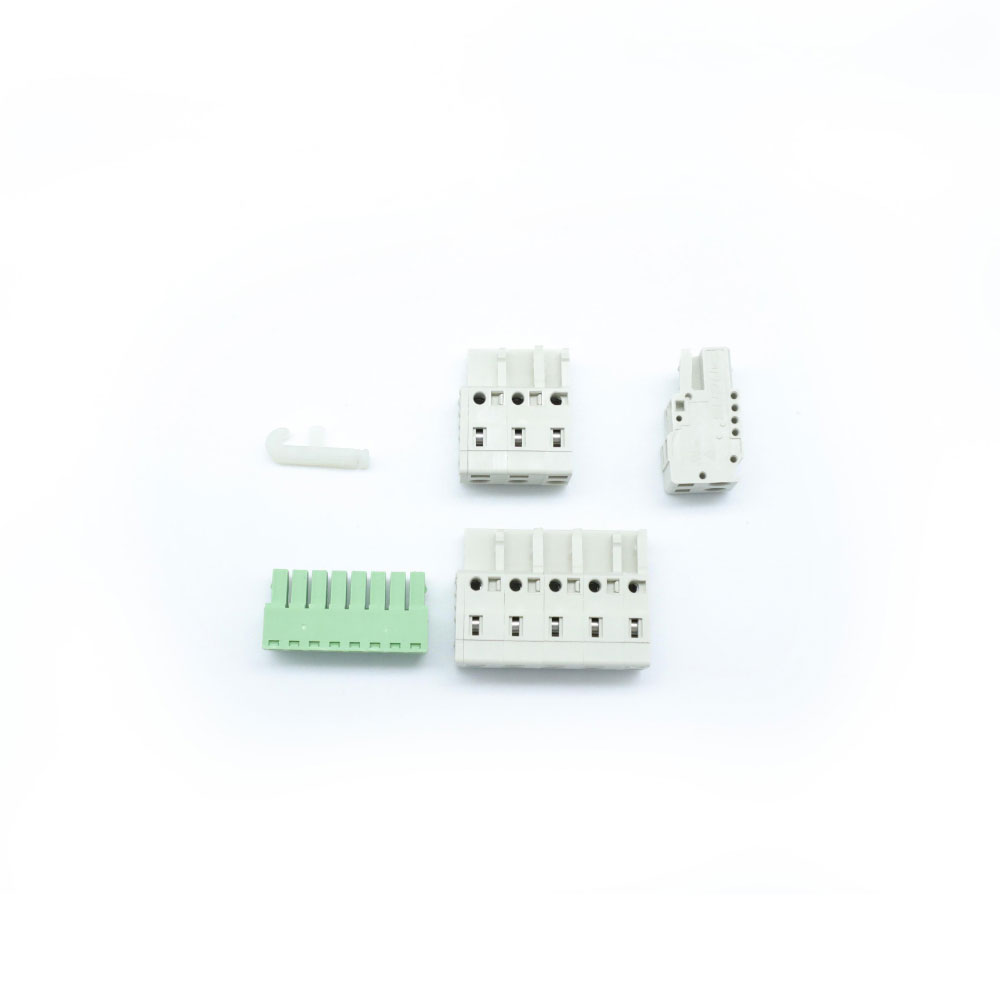

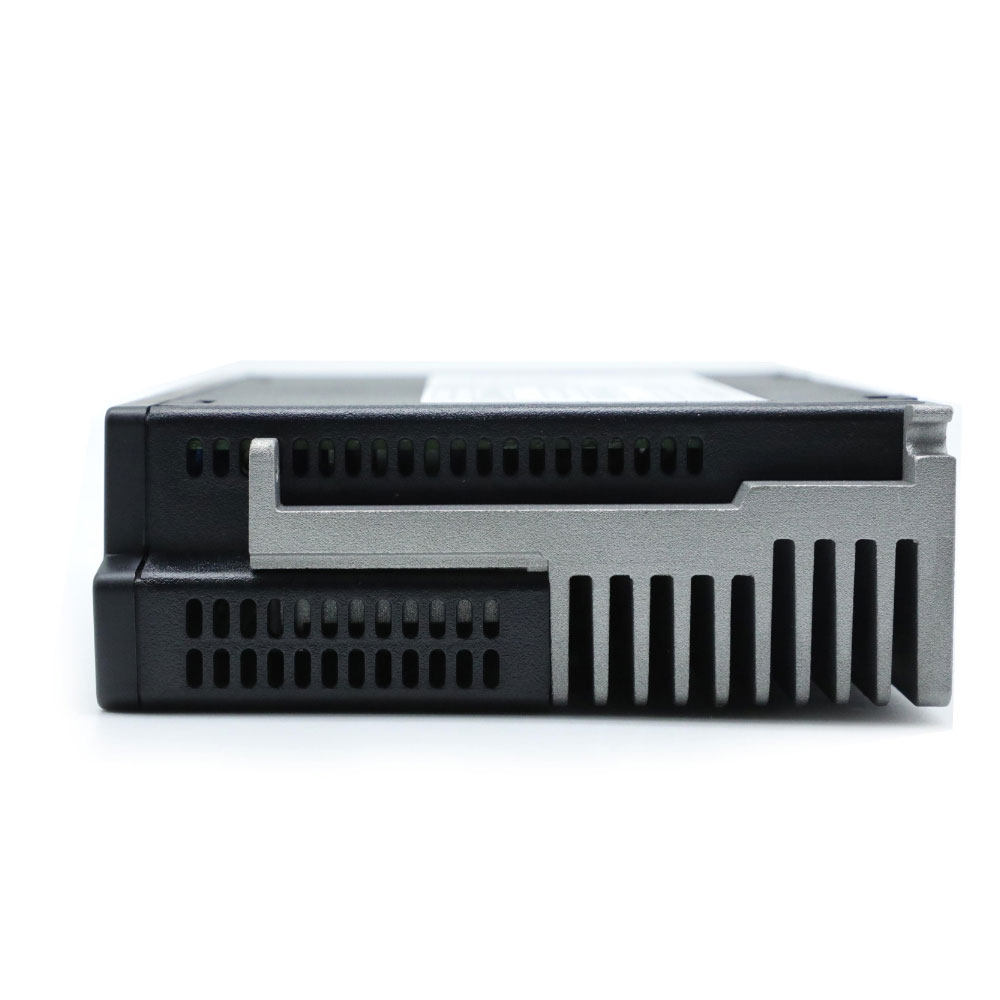

Inquire Now Contact Us3HTD2208A Digital Stepper Motor DriverThe 3HTD2208A is an ultra-quiet, high-torque digital 2-phase stepper driver. Its outstanding quiet operation and high-speed performance have won recognition and praise from numerous customers.This digital stepper driver is compatible with various stepper motors including 57, 60 and 86 series. The 3HTD2208A is a high-performance product with strong market competitiveness.
Equipped with brand-new 32-bit processor based on ARM Cortex-M4 core.Maximum output current: 2.5A.Maximum input voltage: 50VDC.Motor parameter matching available for optimal performance.Built-in self-test function to check the status of motor and driver.Max. input pulse frequency: over 2MHz.Maximum microstep resolution: 25600.Switchable Pulse/Direction mode or Double Pulse mode.Pulse, Direction and Enable signals support 5~24V input.
Electrical parameters
| Driver parameters | Minimum | Typical | Maximum |
|---|---|---|---|
| Input voltageDC(V) | 80 | 220 | 365 |
| Drive Current(A) | 0.5 | 8.0 | |
| Input pulse frequency(Hz) | 1 | 1M | |
| Input Pulse Width(ns) | 250 | 5E+8 | |
| Input Signal Voltage(VDC) | 3.6 | 5 | 24 |
Environmental indexes
| Environmental Factors | Parameter Description |
|---|---|
| Cooling mode | Natural cooling or forced cooling |
| Use occasion | Avoid dust, oil stain and corrosive gas |
| Operating temperature | 0°C--40°C |
| Highest environment humidity | 90%RH |
| Storage temperature | -10°C--70°C |

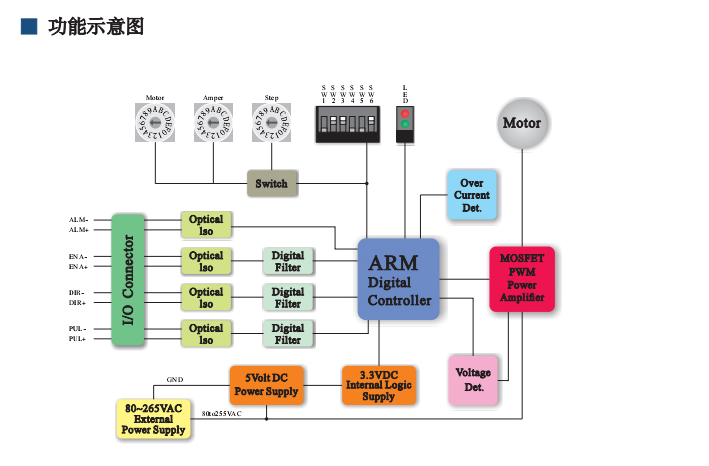

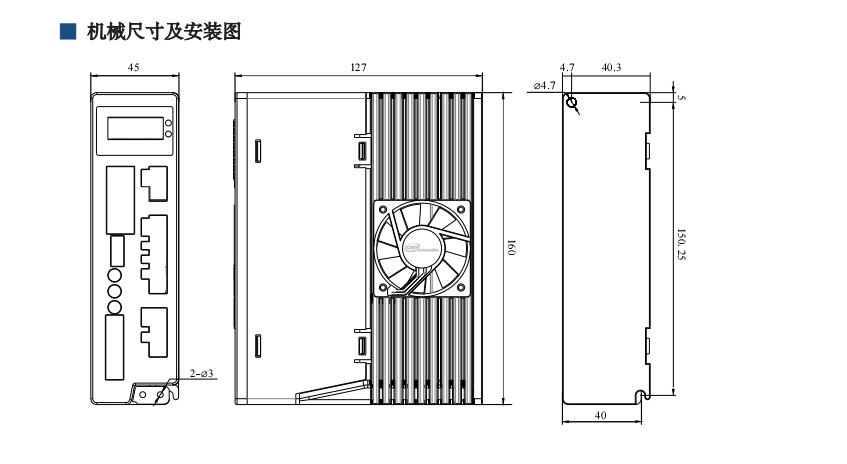

接线图和外型图
