Inquire Now Contact Us| 外壳材质 | Housing Material | Powder Metallurgy |
| 输出轴承形式 | Bearing at output | Ball Bearing |
| 径向负载 | Radial load (10mm from flange) | ≤120(N) |
| 轴向负载 | Shaft axial load | ≤80(N) |
| 静态主轴最大承受压入力 | Shaft press fit force max Static | ≤500(N) |
| 径向间隙 | Radial play of shaft | ≤0.03(mm) |
| 轴向间隙 | Thrust play of shaft | ≤0.1(mm) |
| 背隙（无负载时） | Backlash at no-load | ≤1.5° |
*负载与转速有关，具体数据需参考实际情况。
*Load relates to speed, actual value depends on different situation.

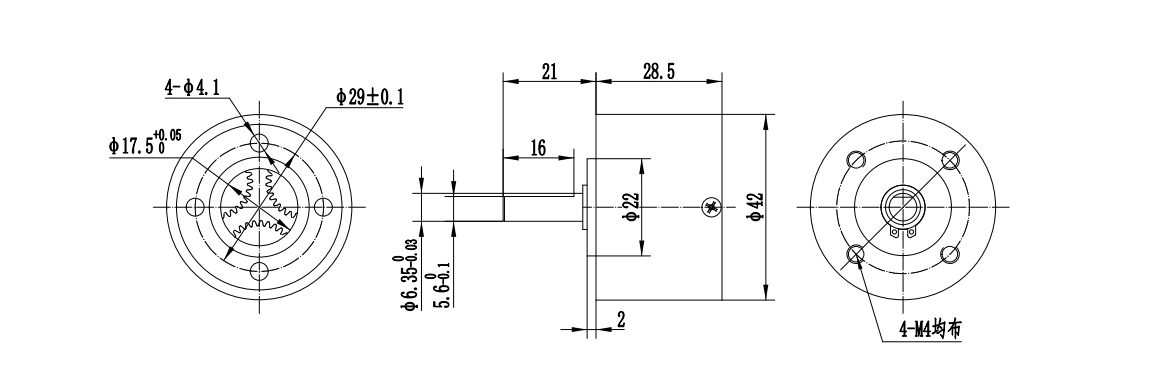

| Gear Ratio | Rated Permissible Load (Nm) | Intermittent Permissible Load (Nm) | Efficiency (%) | Length (mm) | Weight (g) | Number of Reduction Stages |
|---|---|---|---|---|---|---|
| 1/10 | 1.5 | 4.5 | 90% | 28.5 | 180 | 1 |
