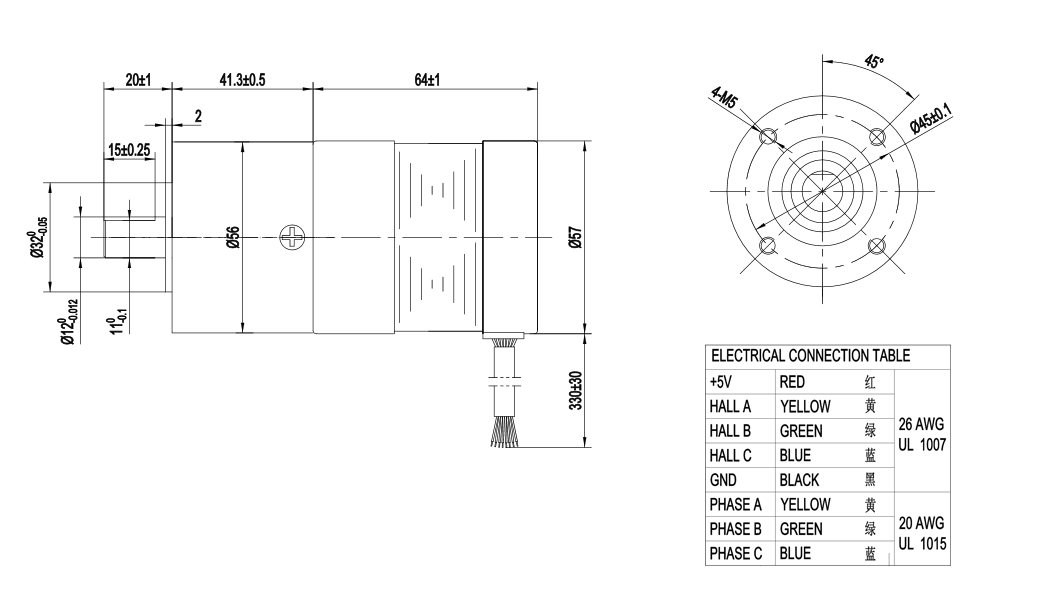

Inquire Now Contact Us| 绕线接法 | Winding Type | Star |
| 霍尔角度 | Hall effect angle | 120° Electrical angle |
| 绝缘等级 | Insulation Class | B |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 绝缘强度 | Dielectric Strength | 600VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 75N (10mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 15N |
| Model | Number of Poles | Number of Phases | Rated Voltage(VDC) | Rated Torque (N.M) | Rated speed(RPM) | Rated Current (Amps) | Output Power (Watts) | Peak Torque (N.M) | Peak Current (Amps) | Torqueconstant(N.M/Amps) | Back EMF(V/kRPM) | Body Length(mm) | Mass(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

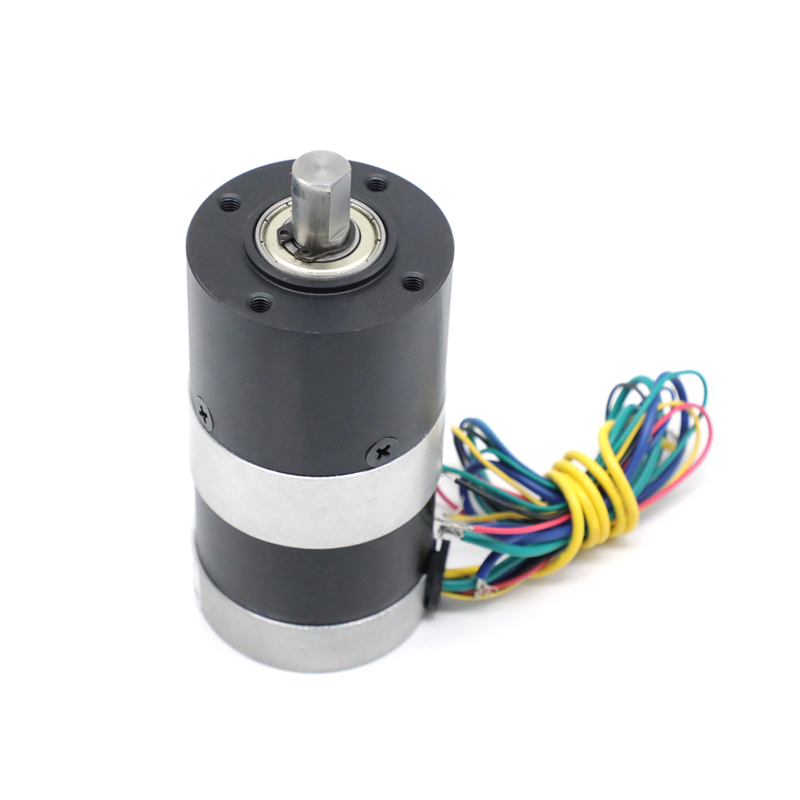

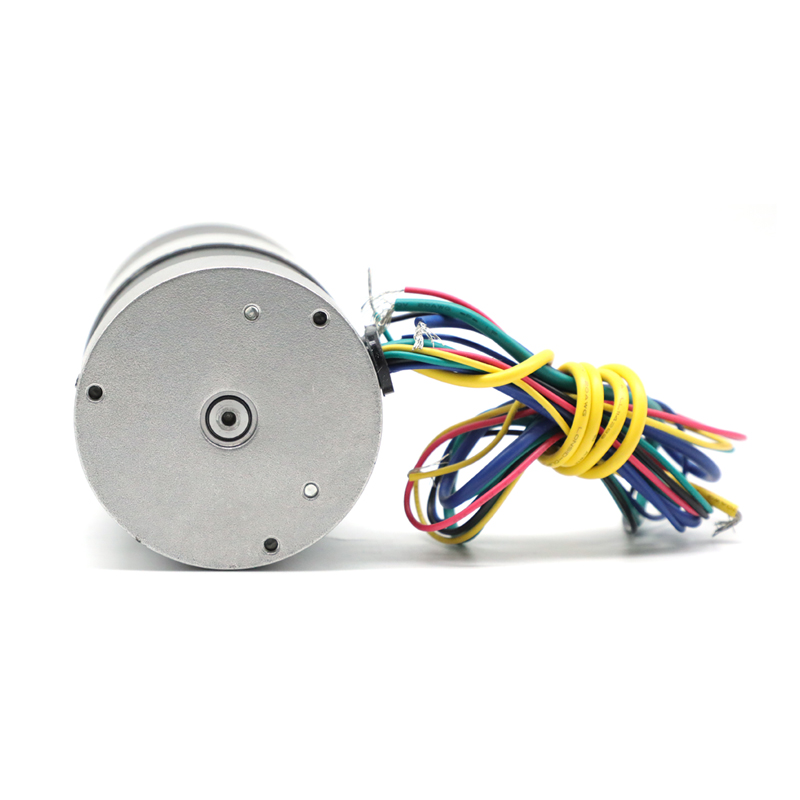

| 57BL03B | 4 | 3 | 24 | 0.18 | 3000 | 3.17 | 56 | 0.54 | 9.5 | 0.057 | 5.9 | 56.5 | 0.56 |
*The above are representative products; derivative products can be customized according to customer requirements.

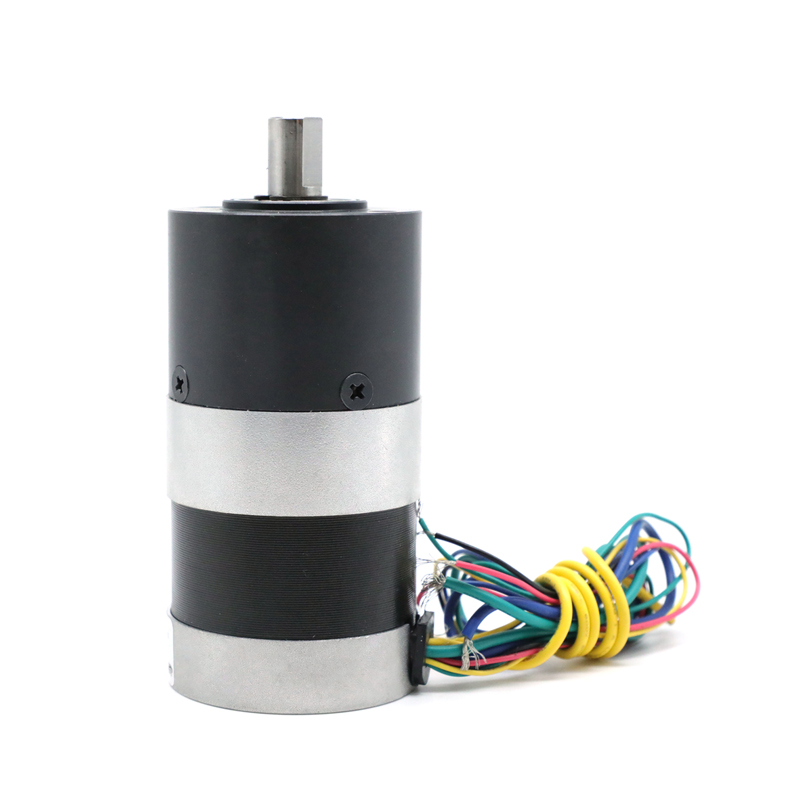

*This product is compatible with 42,52,56 gear reducers.
