Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 28N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 10N |

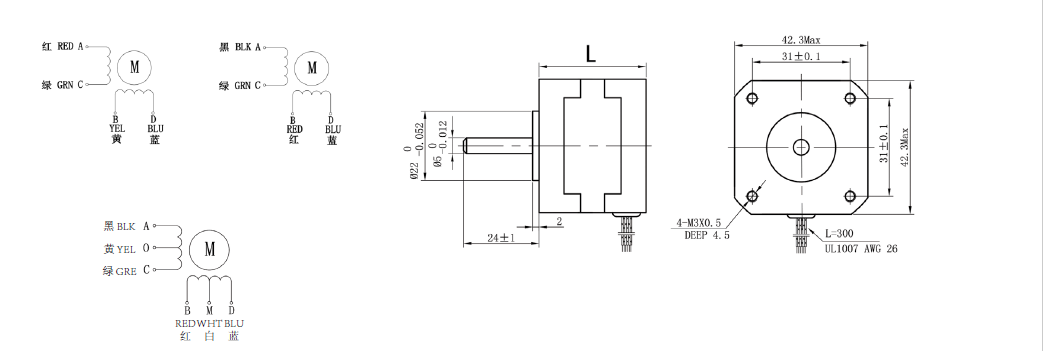

| Model | Step Angle(°/Step) | Lead Wires(NO.) | Voltage(V) | Current(A/Phase) | Resistance(Ω/Phase) | Inductance(mH/Phase) | Holding Torque(g.cm) | Body LengthL(mm) | Mass(Kg) |
|---|---|---|---|---|---|---|---|---|---|

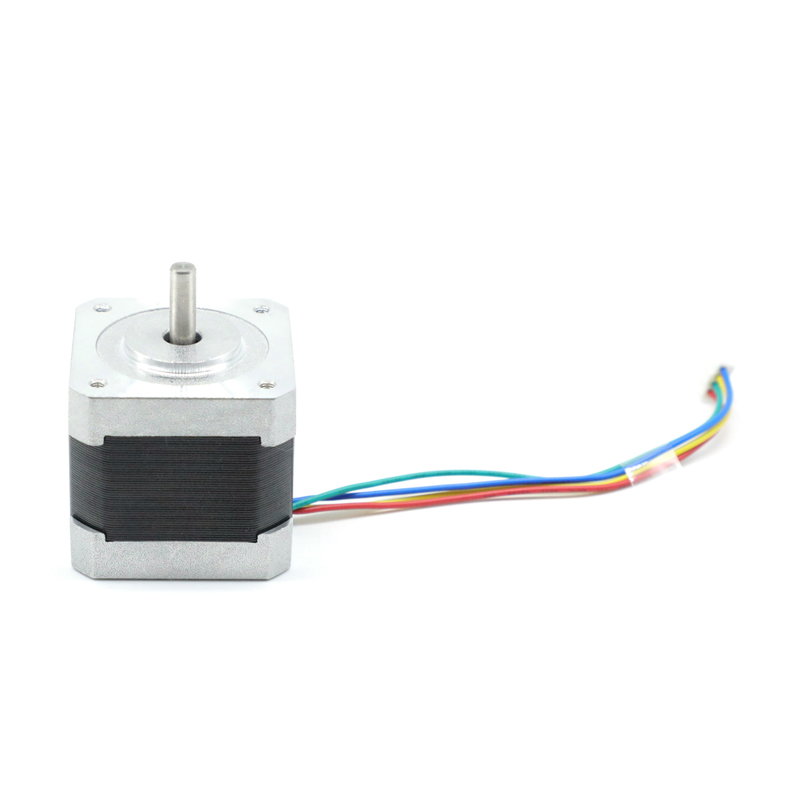

| 42BYGH613-68A | 1.8 | 4 | 2.5 | 1.7 | 1.5 | 2.5 | 3500 | 40 | 0.24 |
*The above are representative products; derivative products can be customized according to customer requirements.
*This product is compatible with 36 and 42 gear reducers.
