Full-range Micro Motor Solutions
We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.

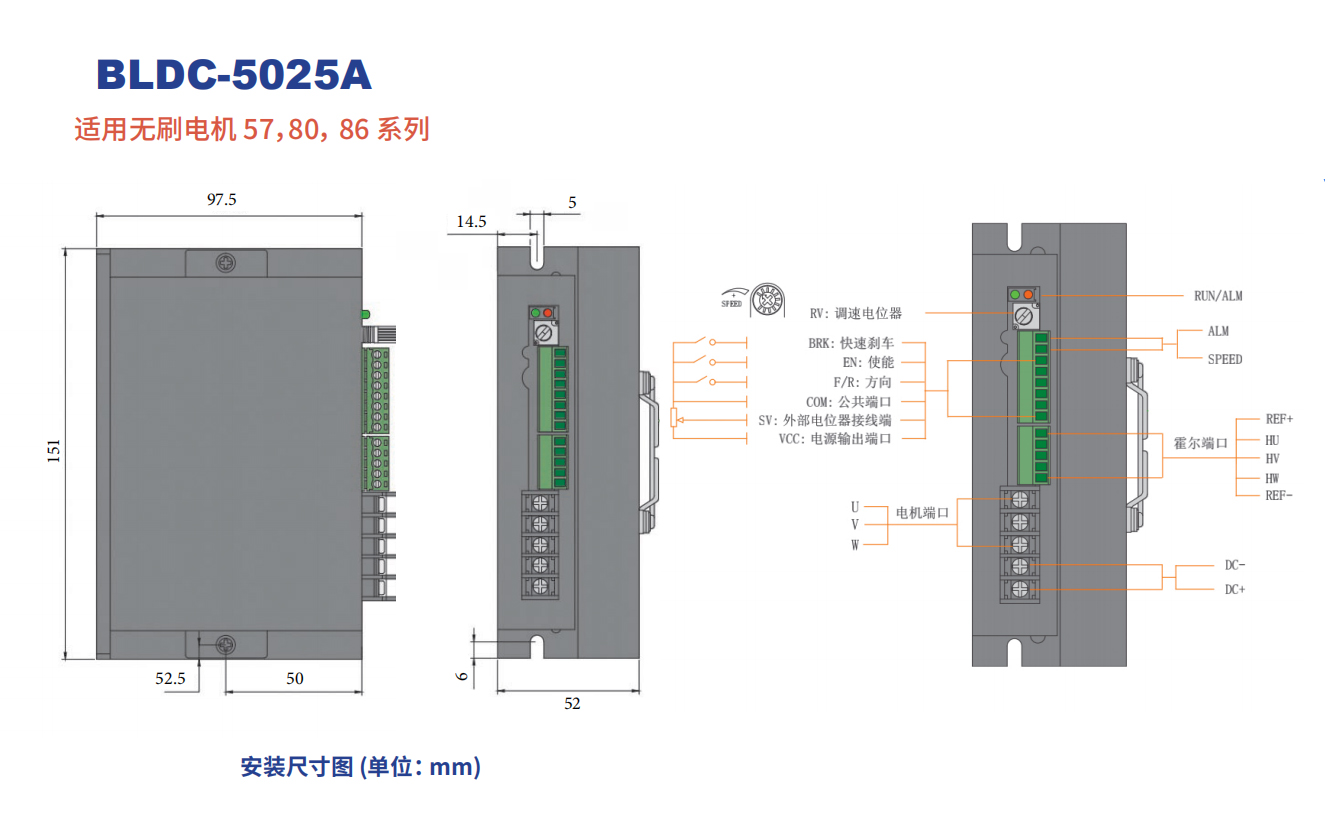

Inquire Now Contact Us| Driver Parameters | 最小值 | Min. | Rated | Unit |
| DC Input Voltage（V） | 18 | 48 | 50 | V |
| Output Current（A） | - | 25 | 45 | A |
| Applicable Motor Speed（rpm） | 0 | 20000 | - | rpm |
| Hall Signal Voltage（V） | 4.5 | 5 | 5.5 | V |
| Hall Driving Current（mA） | - | 20 | - | mA |
| External Speed Potentiometer（KΩ） | - | - | - | KΩ |
| Cooling Method | Natural cooling or forced air cooling | |||
| Operating Environment | Keep away from dust, oil contamination and corrosive gas | |||
| Operating Temperature | 10~+50℃ | |||
| Ambient Humidity | 80%RH (Non-condensing) | |||
| Storage Temperature | -20 ~+120℃ | |||
| Vibration | 5.7m/S2 max | |||
| Net Weight | 0.628 kg | |||
