Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 330N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 100N |

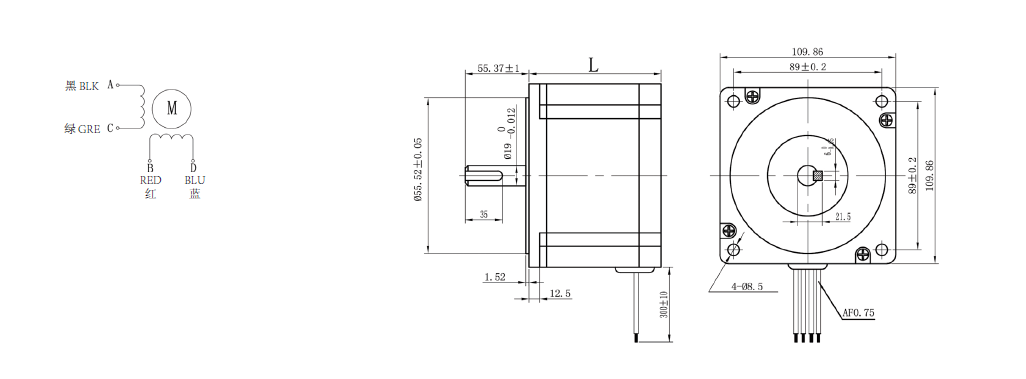

| Model | Step Angle(°/Step) | Lead Wires(NO.) | Voltage(V) | Current(A/Phase) | Resistance(Ω/Phase) | Inductance(mH/Phase) | Holding Torque(n.m) | Body LengthL(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 110BYGH80-001AG | 1.8 | 4 | 9.0 | 6.0 | 1.5 | 14.0 | 8.5 | 80 | 5.0 |
| 110BYGH99-001-10 | 1.8 | 4 | 4.95 | 5.5 | 0.9 | 12.0 | 11.2 | 99 | 5.0 |
| 110BYGH150-001 | 1.8 | 4 | 5.44 | 6.8 | 0.8 | 12.0 | 21 | 150 | 8.4 |
| 110BYGH165-001-03 | 1.8 | 4 | 4.80 | 6.0 | 0.8 | 14.0 | 24 | 165 | 9.5 |
| 110BYGH201-001 | 1.8 | 4 | 5.36 | 8.0 | 0.76 | 16.0 | 30 | 201 | 12.0 |
*The above are representative products; derivative products can be customized according to customer requirements.
