Inquire Now Contact Us| 步距角误差 | ± 5% |
| 最高温升 | 80 ℃ Max |
| 环境温度范围 | -20℃~+50℃ |
| 介电强度 | 500VAC 1 minute |
| 绝缘电阻 | 100MΩMin.500 VDC |
| Model | Step Angle (°) | Body Length L (mm) | Phase Voltage (V) | Phase Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.m) | Lead Wires (NO.) | Moment of Inertia (kg・cm²) | Holding Torque (kg.cm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 86BYGX450A-003 | 1.8 | 62 | 5.8 | 1.6 | 3.6 | 27 | 1.76 | 4 | 0.64 | 0.8 | 1.6 |
| 86BYGX450A-008 | 1.8 | 62 | 2.35 | 2.5 | 0.94 | 7 | 1.96 | 4 | 0.64 | 0.8 | 1.6 |
| 86BYGX450A-014 | 1.8 | 62 | 1.4 | 4.5 | 0.31 | 1.3 | 1.6 | 8 | 0.64 | 0.8 | 1.6 |
| 86BYGX450B-005 | 1.8 | 92 | 3.6 | 3 | 1.2 | 11 | 4 | 4 | 1.3 | 1.5 | 2.6 |
| 86BYGX450B-008-01 | 1.8 | 92 | 3 | 4 | 0.75 | 3.5 | 2.8 | 8 | 1.3 | 1.5 | 2.6 |
| 86BYGX450B-025 | 1.8 | 92 | 2.8 | 4 | 0.7 | 9.8 | 4.1 | 4 | 1.3 | 1.5 | 2.6 |
| 86BYGX450C-002-03 | 1.8 | 129 | 4.2 | 3.5 | 1.2 | 5.2 | 4 | 8 | 1.9 | 2.5 | 3.8 |
| 86BYGX450C-003-02 | 1.8 | 129 | 4 | 4 | 1 | 6 | 4 | 8 | 19 | 2.5 | 3.8 |
*The above are representative products; derivative products can be customized according to customer requirements.

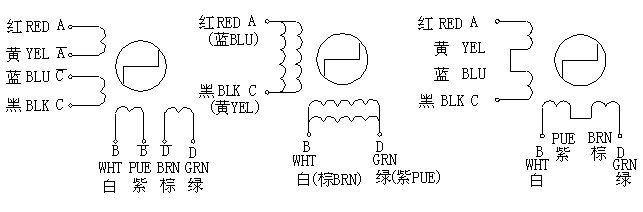

Wiring Diagram:
