Inquire Now Contact UsThe BLDC-4005A DC Brushless Motor Driver is independently developed by Changzhou Hetai Motor Circuit Co., Ltd. It is a dedicated drive product for low-voltage low-power DC brushless motors.
The BLDC-4005A is applicable to speed regulation of 3-phase DC brushless motors with power of 125W and below. It supports built-in potentiometer speed regulation, external potentiometer speed regulation and external analog voltage speed regulation.
The driver features high-torque startup, fast start-stop & braking, forward/reverse rotation switching, and combines manual and automatic speed regulation functions.

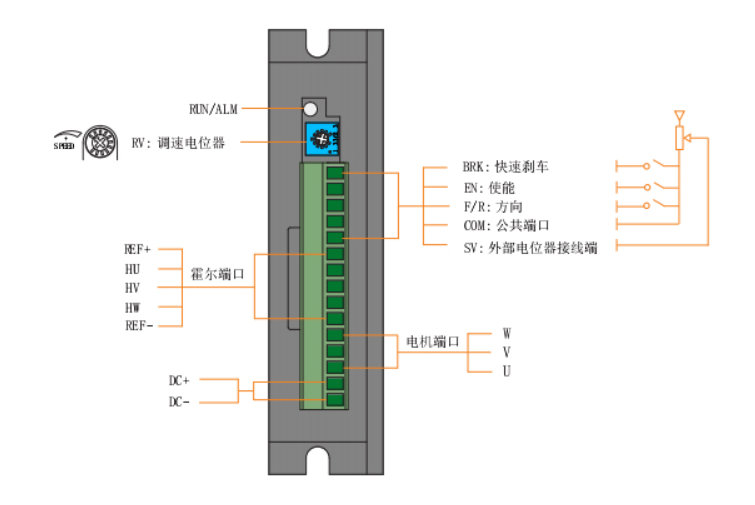

ser-friendly and easy to operate.Built-in potentiometer for speed regulation.Forward/reverse rotation, start/stop and brake can be realized by connecting external switches.
• Built-in Potentiometer Speed Regulation
• External Potentiometer Speed Regulation
• External Signal Speed Regulation

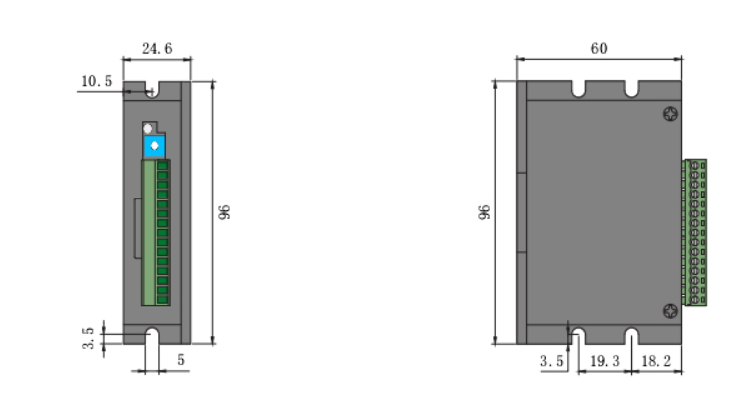

Compact size, easy to install
Electrical Specifications
| Driver parameters | Minimum | Typical | Maximum |
|---|---|---|---|
| Input voltageDC(V) | 12 | 24 | 30 |
| Output Current (A) | 8 | 16 | |
| Motor Speed (rpm) | 0 | 3000 | 20000 |
| Hall Signal Voltage (V) | 4.5 | 5 | 5.5 |
| Hall Drive Current (A) | 20 | ||
| External Potentiometer (kΩ) | 10 |
Environmental Specifications
| Environmental Factors | Environmental Specifications |
|---|---|
| Cooling Method | Natural Cooling or Forced Cooling |
| Use occasion | Avoid dust, oil stain and corrosive gas |
| Operating Temp. | 10°C--+50°C |
| Ambient Humidity | 5.7m/S2 max |
| Storage temperature | -20°C--+125°C |
