Full-range Micro Motor Solutions
We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.
Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 75N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 15N |

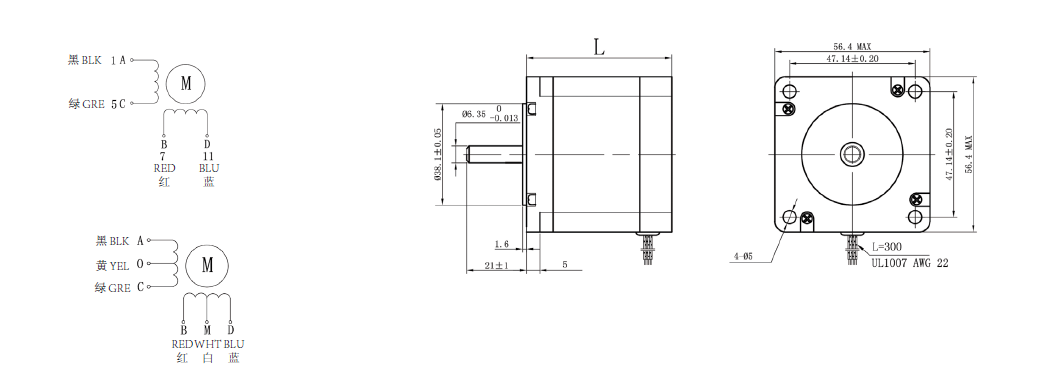

| Model | Step Angle(°/Step) | Lead Wires(NO.) | Voltage(V) | Current(A/Phase) | Resistance(Ω/Phase) | Inductance(mH/Phase) | Holding Torque(kg.cm) | Body LengthL(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGH001A | 1.8 | 4 | 6.0 | 0.5 | 12 | 20 | 3.5 | 41 | 0.45 |
| 57BYGH048-11 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 5.0 | 6.0 | 41 | 0.45 |
| 57BYGH201-22A | 1.8 | 4 | 6.6 | 0.6 | 11 | 25 | 7.0 | 51 | 0.65 |
| 57BYGH218-45 | 1.8 | 4 | 2.6 | 2.0 | 1.3 | 4 | 8.0 | 51 | 0.65 |
| 57BYGH420-77 | 1.8 | 6 | 3.8 | 2.0 | 1.9 | 3.5 | 9.0 | 56 | 0.70 |
| 57BYGH432-63A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.2 | 9.0 | 56 | 0.70 |
| 57BYGH633-131 | 1.8 | 6 | 3.0 | 3.0 | 1.0 | 1.8 | 13.5 | 78 | 1.00 |
| 57BYGH639-10E | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.6 | 18 | 78 | 1.13 |
| 57BYGH801-01 | 1.8 | 6 | 3.3 | 3.0 | 1.1 | 2.5 | 16 | 84 | 1.13 |
| 57BYGH815 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16 | 20 | 84 | 1.13 |
*The above are representative products; derivative products can be customized according to customer requirements.
*This product is compatible with 42,52,56 gear reducers.
