Full-range Micro Motor Solutions
We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.
Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 28N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 10N |

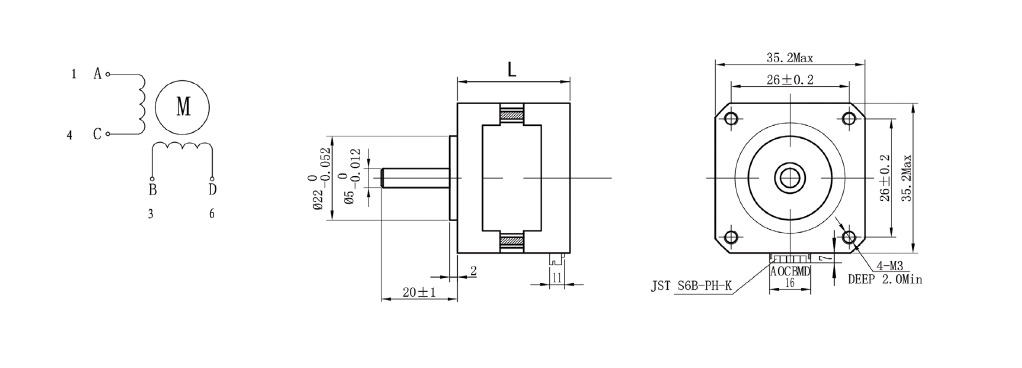

| Model | Step Angle(°/Step) | Lead Wires(NO.) | Voltage(V) | Current(A/Phase) | Resistance(Ω/Phase) | Inductance(mH/Phase) | Holding Torque(g.cm) | Body LengthL(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 35BYGX001A | 1.8 | 4 | 10.4 | 0.4 | 26 | 17 | 500 | 23 | 0.12 |
| 35BYGX200A | 1.8 | 4 | 4.20 | 1 | 4.2 | 5.5 | 1250 | 29 | 0.12 |
| 35BYGX201A | 1.8 | 4 | 1.45 | 0.5 | 2.9 | 2.6 | 500 | 29 | 0.13 |
| 35BYGX401 | 1.8 | 4 | 3.20 | 1 | 3.2 | 3.8 | 1400 | 34 | 0.16 |
*Products shown are representative. Derivatives available for customisation upon customer request.
*Compatible with 28 & 36 gearboxes.
