We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.
Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 28N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 10N |

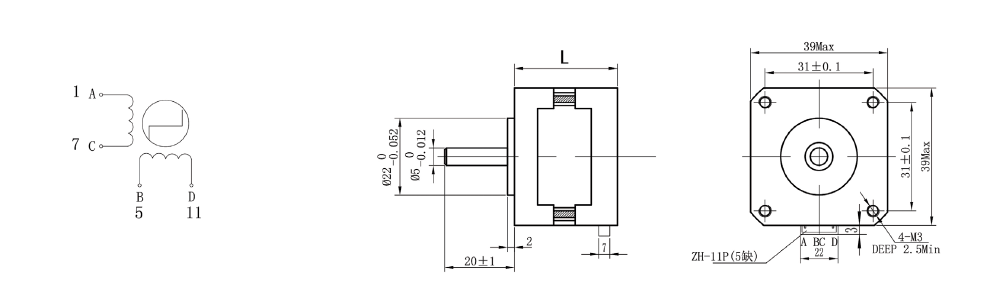

| Model | Step Angle(°/Step) | Lead Wires(NO.) | Voltage(V) | Current(A/Phase) | Resistance(Ω/Phase) | Inductance(mH/Phase) | Holding Torque(g.cm) | Body LengthL(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 39BYGX001A | 1.8 | 4 | 13.44 | 0.48 | 28 | 21 | 1000 | 20 | 0.10 |
| 39BYGX002A | 1.8 | 4 | 8.4 | 0.7 | 12 | 11 | 1200 | 20 | 0.10 |
| 39BYGX100A | 1.8 | 4 | 12 | 0.4 | 30 | 20 | 1300 | 22 | 0.12 |
| 39BYGX200A | 1.8 | 4 | 14.4 | 0.4 | 36 | 33 | 1700 | 25 | 0.14 |
*The above listed are representative models. Derivative products are available for customization upon customer request.*This product fits 36 series gear reducers.
