We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.

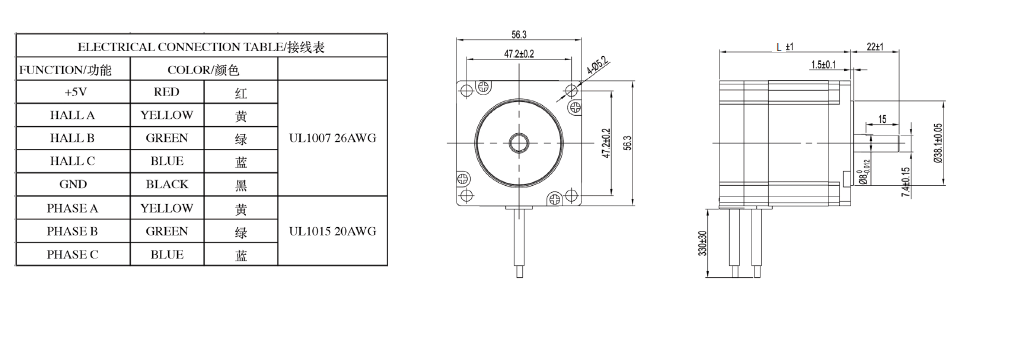

Inquire Now Contact Us| 绕线接法 | Winding Type | Star |
| 霍尔角度 | Hall effect angle | 120° Electrical angle |
| 绝缘等级 | Insulation Class | B |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 绝缘强度 | Dielectric Strength | 600VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 115N (10mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 45N |
| Model | Number of Poles | Number of Phases | Rated Voltage(VDC) | Rated Torque(N.M) | Rated Speed(RPM) | Rated Current(Amps) | Output Power(Watts) | Peak Torque(N.M) | Peak Torque(Amps) | Torque Constant (N.M/Amps) | Back EMF(V/kRPM) | Body Length(mm) | MASS (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

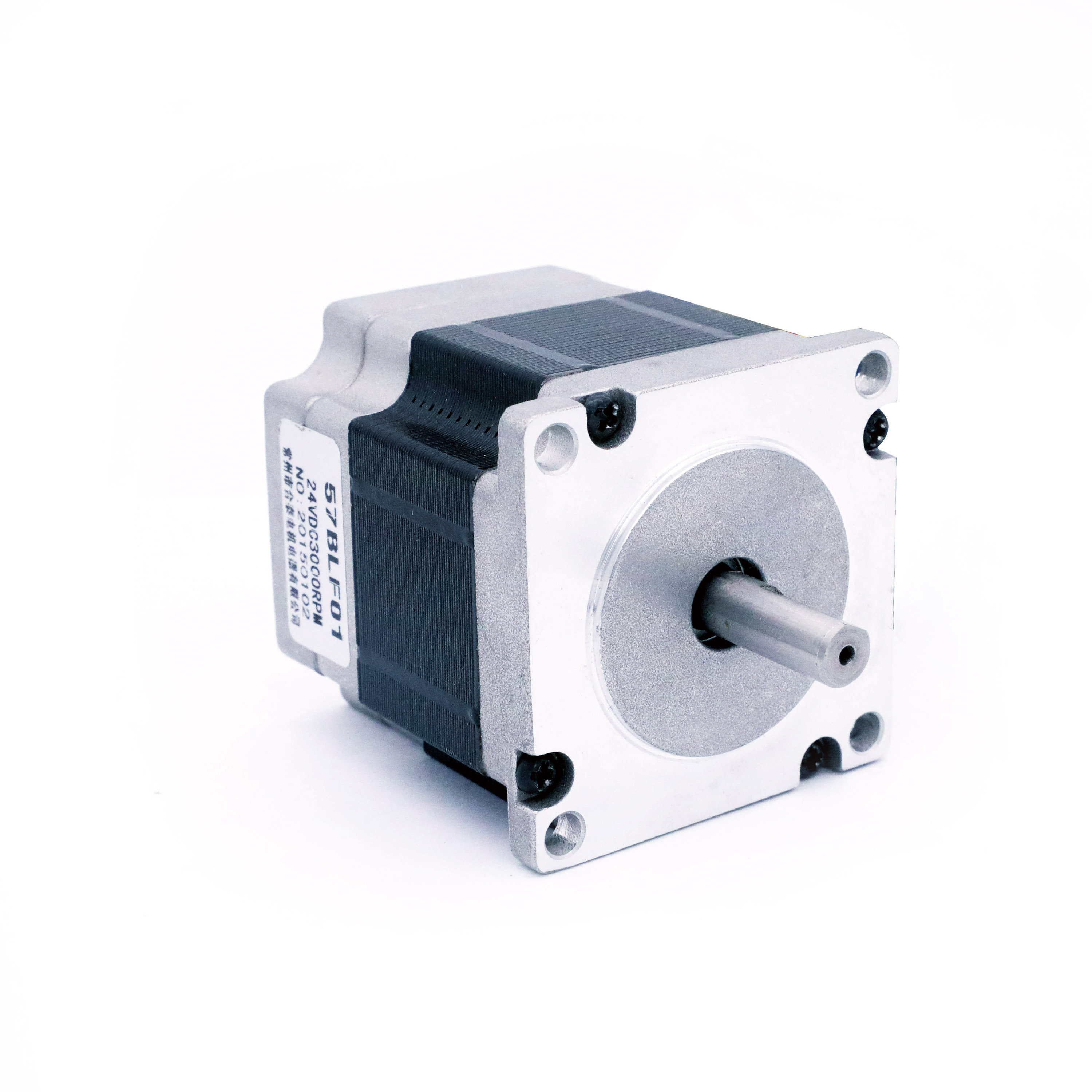

| 57BLF01 | 8 | 3 | 24 | 0.2 | 3800 | 3.33 | 80 | 0.6 | 10.0 | 0.06 | 6.3 | 59 | 0.61 |
| 57BLF02 | 8 | 3 | 24 | 0.4 | 3000 | 6.67 | 125 | 1.2 | 20.0 | 0.06 | 6.3 | 80 | 0.94 |

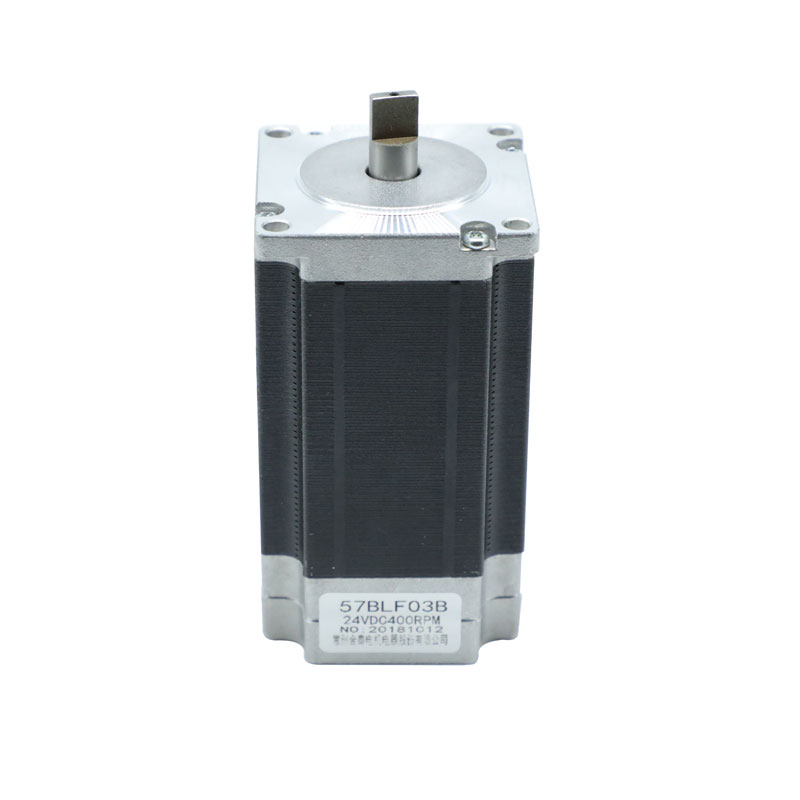

| 57BLF03 | 8 | 3 | 24 | 0.6 | 3000 | 10.0 | 188 | 1.8 | 30.0 | 0.06 | 6.3 | 101 | 1.25 |
| 57BLF04A-001 | 8 | 3 | 36 | 0.8 | 3000 | 8.87 | 251 | 2.4 | 26.6 | 0.09 | 9.47 | 122 | 1.59 |
*The above are representative products; derivative products can be customized according to customer requirements.
*This product is compatible with 36,42,56 gear reducers.
