Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Maxl |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 绝缘强度 | Dielectric Strength | 500VAC 1S |

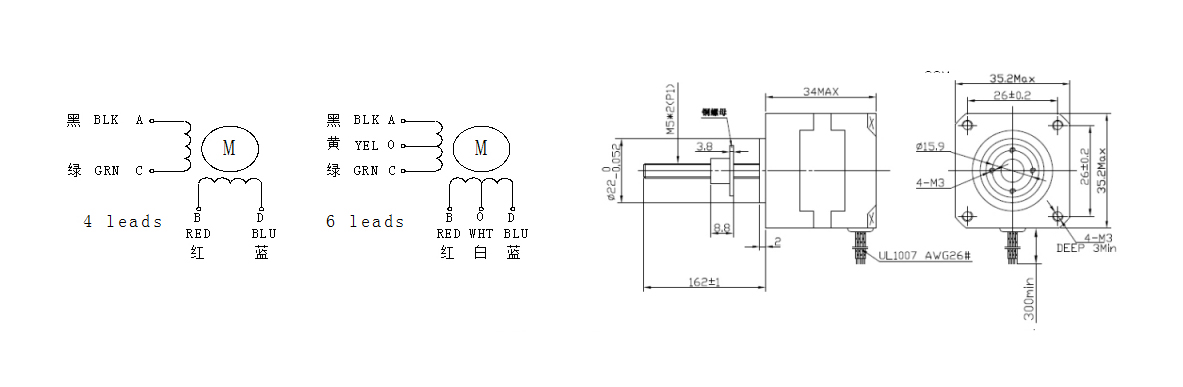

| Model | Step Angle | Body Length | Phase Voltage | Phase Current | Phase Resistance | Phase Inductance | Holding Torque | Lead Wires | Rotor inertia | 定位力矩 | Mass |
| (mm/step) | (mm) | (V) | (A) | (Ω) | (mH) | (kg.cm) | (NO.) | (g.cm2) | (g.cm) | (kg) | |
| 35BYGL402E | 0.01 | 34 | 3.6 | 0.8 | 4.5 | 4.5 | 1 | 4 | 13 | 95 | 0.17 |
| 35BYGL401 | 0.01 | 34 | 12 | 0.5 | 24 | 12 | 1 | 6 | 13 | 95 | 0.17 |
*The above are representative products; derivative products can be customized according to customer requirements.
