We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.
Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 75N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 15N |
| Model | Step Angle (°/Step) | Lead Wires (NO.) | Voltage (V) | Current (A/Phase) | Resistance (Ω/Phase) | Inductance (mH/Phase) | Holding Torque (kg・cm) | Body Length (L) | (kg) |
| 57BYGN001 | 1.8 | 6 | 12 | 0.38 | 32 | 25 | 3 | 41 | 0.45 |
| 57BYGN027 | 1.8 | 4 | 2.8 | 1.4 | 2.1 | 3.5 | 3.9 | 41 | 0.45 |
| 57BYGN200-19A | 1.8 | 6 | 5 | 1 | 5 | 11.5 | 5.8 | 51 | 0.65 |

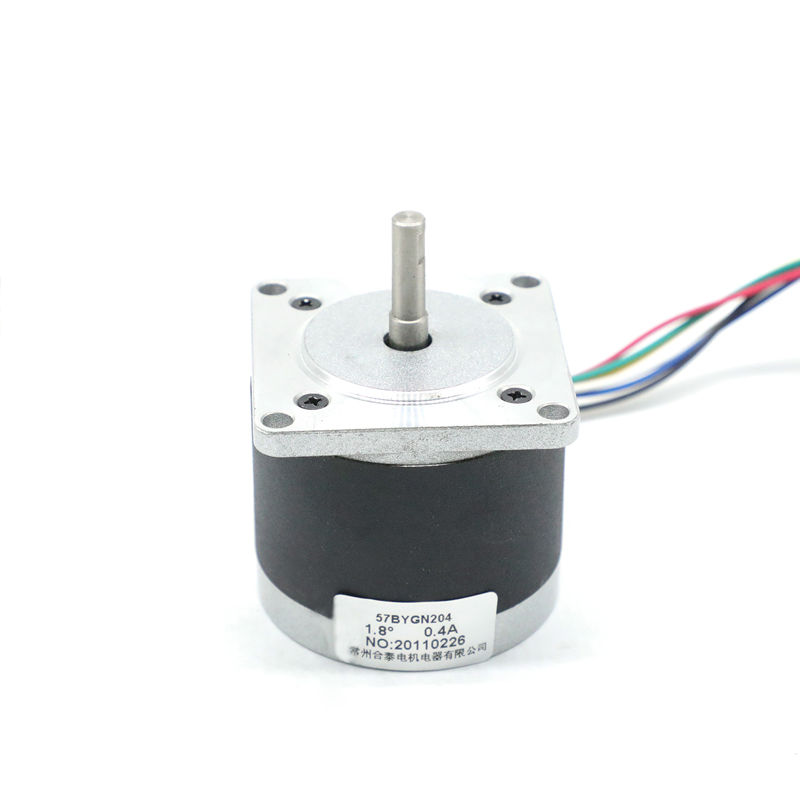

| 57BYGN204 | 1.8 | 6 | 11.2 | 0.4 | 28 | 30 | 3.8 | 51 | 0.65 |
| 57BYGN400-11A | 1.8 | 4 | 5.5 | 1.1 | 5 | 12 | 7.8 | 56 | 0.7 |
| 57BYGN412 | 1.8 | 4 | 4.4 | 2 | 2.2 | 6.33 | 9 | 56 | 0.7 |
*The above are representative products; derivative products can be customized according to customer requirements.
