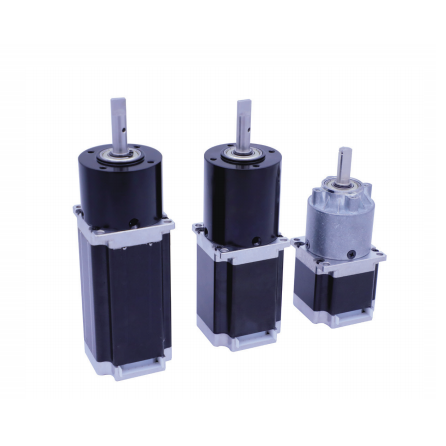

Hybrid step-type star-type gearbox motor

Hybrid stepper gearbox motor 57 series

We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.

Inquire Now Contact Us

Overview Product Appearance

Product Introduction

Product Overview

Step accuracy	+- 5%
Temperature rise	80°C Max
Ambient temperture range	-20°C - +50°C
Insulation resistance	100MΩ.500 VDC
Dielectric strength	500V AC 1 minute

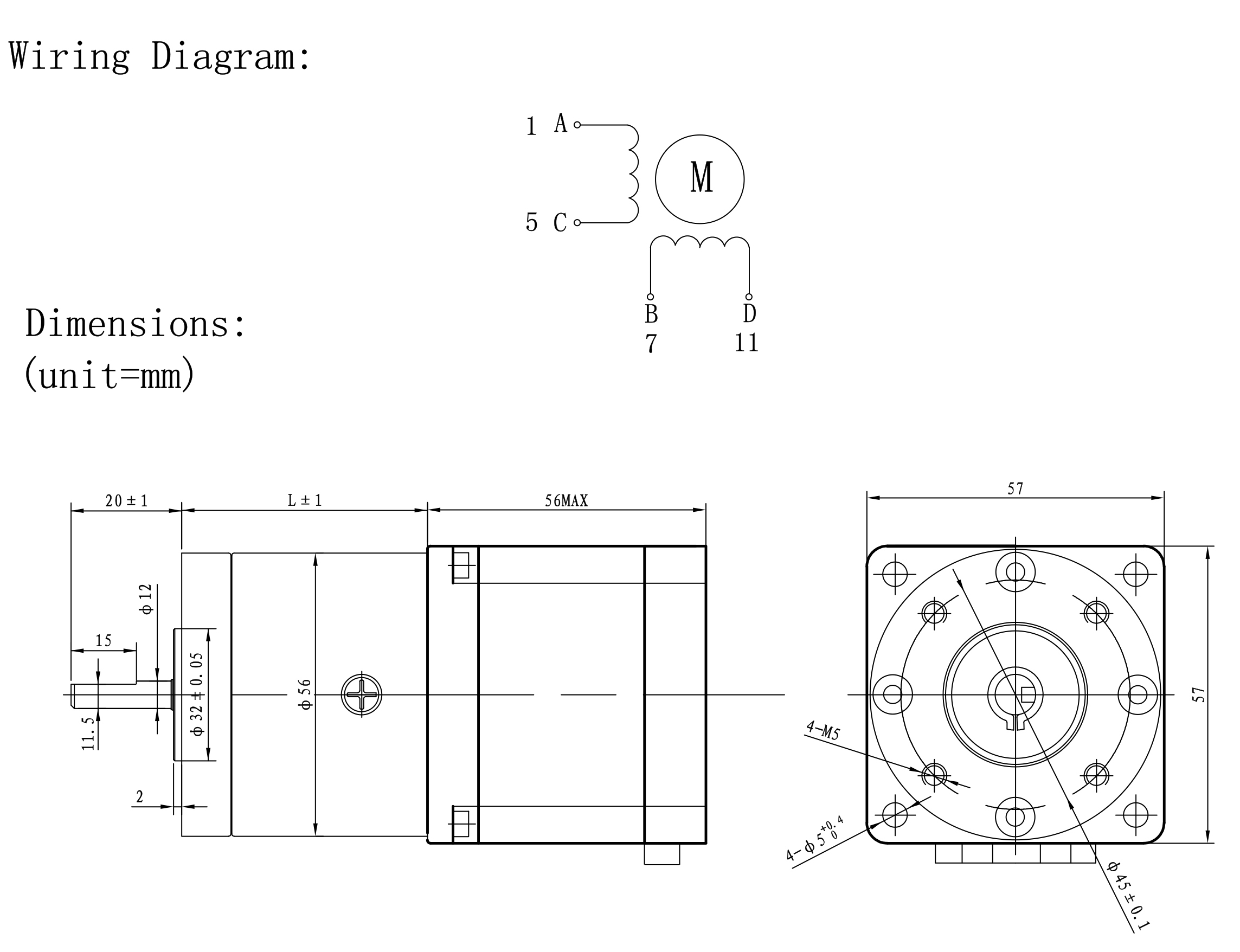

Technical Data

Model	Gear Ratio	Gearbox Diameter	Phase Voltage	Phase Current	Phase Resistance	Phase Inductance	Holding Torque	Gearbox Height	Motor Height	Total Weight
57BYGH231-05AG13	1/13	52	9.6	1.0	9.6	20	0.10	52.9	51.1	1.05
57BYGH236-01AG6	1/6	56	12.0	0.55	22	55	0.90	41.3	62.7	1.25
57BYGH406-17AG6	1/6	56	6.2	1.0	6.2	18	0.9	41.3	67.7	1.25
57BYGH636-80AG15	1/15	56	1.5	3.0	0.5	1.8	1.5	59.6	69.4	1.70

Optional Gearboxes:

52mm Zinc Alloy Planetary Gearbox
Gear Ratio	Intermittent Permissible Load (Nm)	Length (mm)	Reduction Stages
1/13	6.0	52.9	1
56mm Planetary Gearbox
Gear Ratio	6.0	52.9	1	Intermittent Permissible Load (Nm)	Length (mm)	Reduction Stages
1/4
1/6
1/15	25	59.6	2
1/18	25	59.6	2
1/26	50	59.6	2
1/47
1/66

56mm Zinc Alloy Planetary Gearbox
Gear Ratio	Intermittent Permissible Load (Nm)	Length (mm)	Reduction Stages
1/13	6.0	52.7	1
56mm Alternative Planetary Gearbox Models
Gear Ratio	Intermittent Permissible Load (Nm)	Length (mm)	Reduction Stages
1/4	6.0	43.3	1
1/6	6.0	43.3	1
56mm Zinc Alloy & Engineering Plastic Planetary Gearbox
Gear Ratio	Intermittent Permissible Load (Nm)	Length (mm)	Reduction Stages
1/15	25	61.6	2
1/18
1/26
1/47	50	61.6	2
1/66	50	61.6	2
