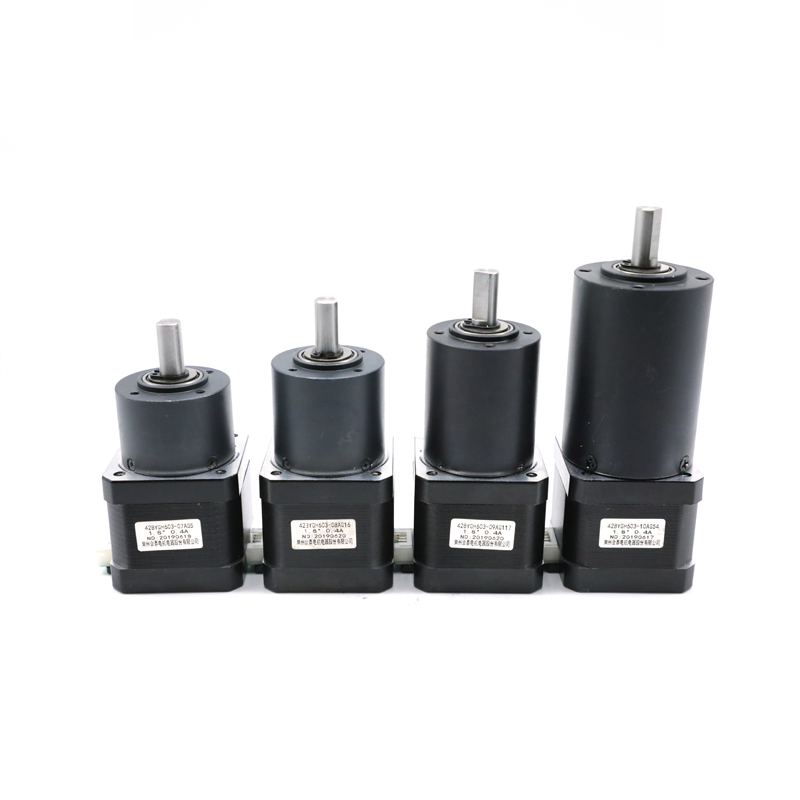

Hybrid step-type star-type gearbox motor

Hybrid stepper gearbox motor 42 series

We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.

Inquire Now Contact Us

Overview Product Appearance

Product Introduction

Product Overview

Step accuracy	+- 5%
Temperature rise	80°C Max
Ambient temperture range	-20°C - +50°C
Insulation resistance	100MΩ.500 VDC
Dielectric strength	500V AC 1 minute

Technical Data

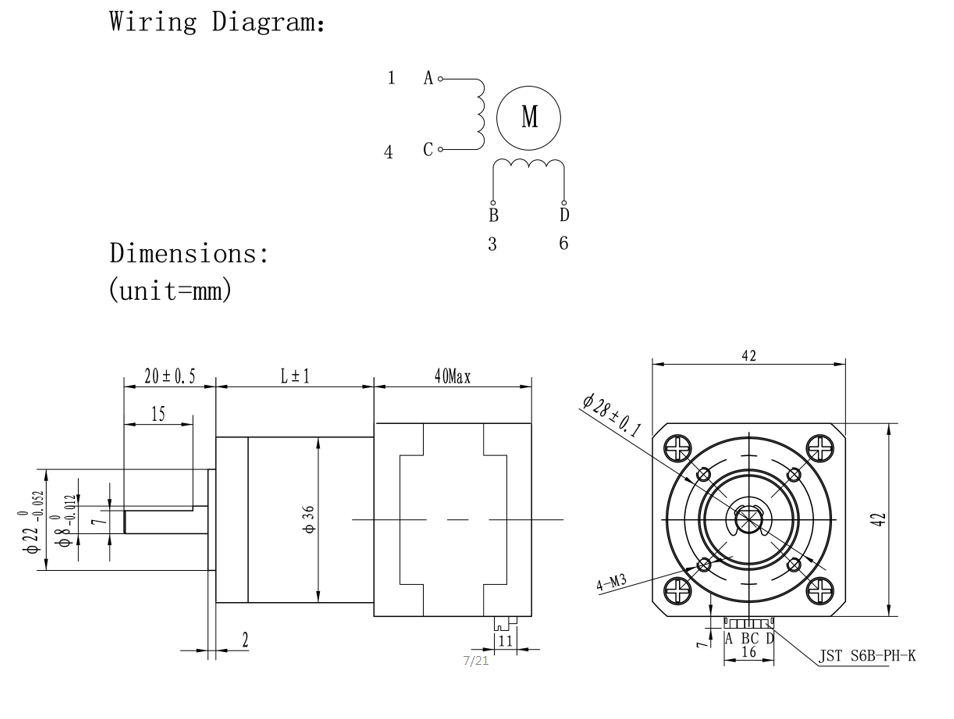

Model	Gear Ratio	Gearbox Diameter	Phase Voltage	Phase Current	Phase Resistance	Phase Inductance	Holding Torque	Gearbox Height	Motor Height	Total Weight
42BYGH208-56AG5	1/6	36	12	0.4	30	42	0.25	24.8	34	0.35
42BYGH835-08AG16	1/6	36	12	0.5	24	36	0.44	24.8	55.6	0.52
42BYGH603-10AG54	1/54	42	12	0.4	30	65	0.38	60.1	40	0.45
42BYGH868-16AG54	1/54	42	6.56	0.8	8.2	13.8	0.49	60.1	48	0.55

Optional Gearboxes:

36mm Planetary Gear Reducer
Gear Ratio	Intermittent Permissible Load (Nm)	Length (mm)	Reduction Stages
1/4	1.0	24.8	1
1/5	1.0	24.8	1
1/16	3.5	32.4	2
1/20
1/25
1/53	7.5	41.9	3
1/62
1/76
1/94
1/117

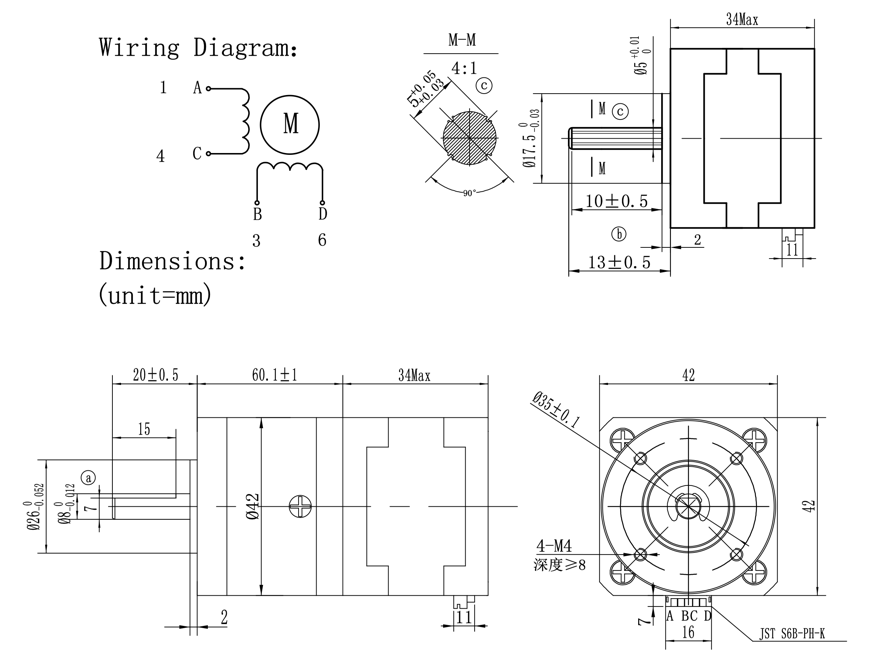

42mm Planetary Gear Reducer
Gear Ratio	Intermittent Permissible Load (Nm)	Length (mm)	Reduction Stages
1/4	3.0	32.5	1
1/6	3.0	32.5	1
1/15	12	46.3	2
1/18
1/25
1/36
1/54	25	60.1	3
1/65
1/90
1/112
1/155
1/216	25	60.1	3
