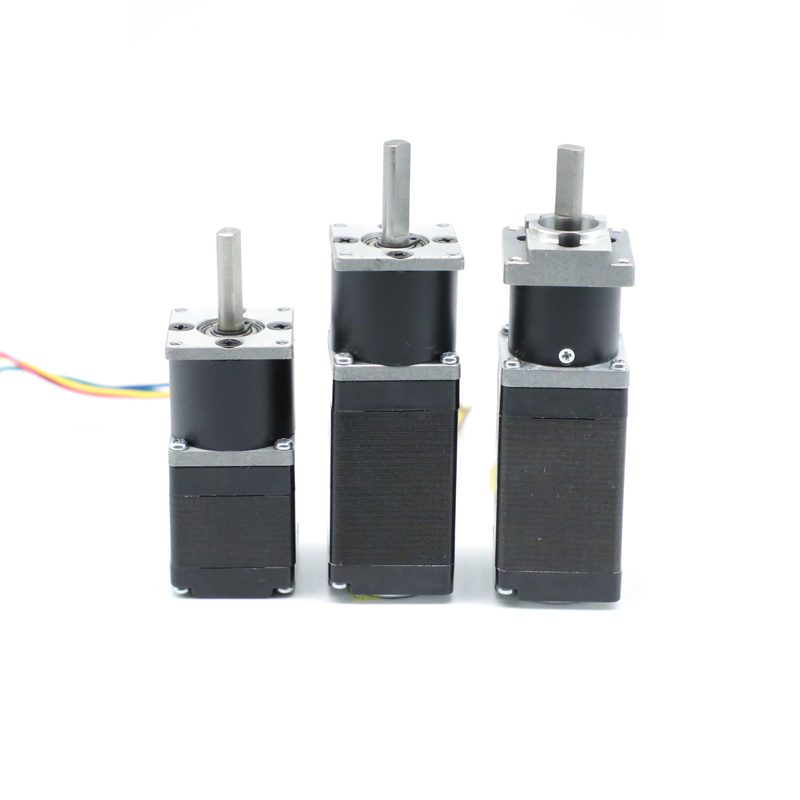

Full-range Micro Motor Solutions
We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.
Inquire Now Contact Us| Step accuracy | +- 5% |
| Temperature rise | 80°C Max |
| Ambient temperture range | -20°C - +50°C |
| Insulation resistance | 100MΩ.500 VDC |
| Dielectric strength | 500V AC 1 minute |
| Model | Gear Ratio | Gearbox Diameter | Phase Voltage | Phase Current | Phase Resistance | Phase Inductance | Holding Torque | Gearbox Height | Motor Height | Total Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 28BYGH102-39AG6 | 1/6 | 28 | 4.22 | 0.67 | 6.3 | 3.2 | 0.06 | 28.5 | 32.5 | 0.22 |
| 28BYGH507-02AG6 | 1/6 | 28 | 4.56 | 0.67 | 6.8 | 4.9 | 0.095 | 28.5 | 54 | 0.31 |
Optional Gearboxes:
| 28mm Square Planetary Gearbox | |||
|---|---|---|---|
| Gear Ratio | Intermittent Permissible Load (Nm) | Length (mm) | Reduction Stages |
| 1/3 | 0.6 | 28.5 | 1 |
| 1/6 | |||
| 28mm Round Planetary Gearbox | |||
|---|---|---|---|
| Gear Ratio | Intermittent Permissible Load (Nm) | Length (mm) | Reduction Stages |
| 1/14 | 1.5 | 29.8 | 1 |
| 1/30 | |||
| 1/64 | 5 | 40.0 | 1 |
| 1/107 | |||
