Inquire Now Contact Us| 绕线接法 | Winding Type | Star |
| 霍尔角度 | Hall effect angle | 120° Electrical angle |
| 绝缘等级 | Insulation Class | B |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |

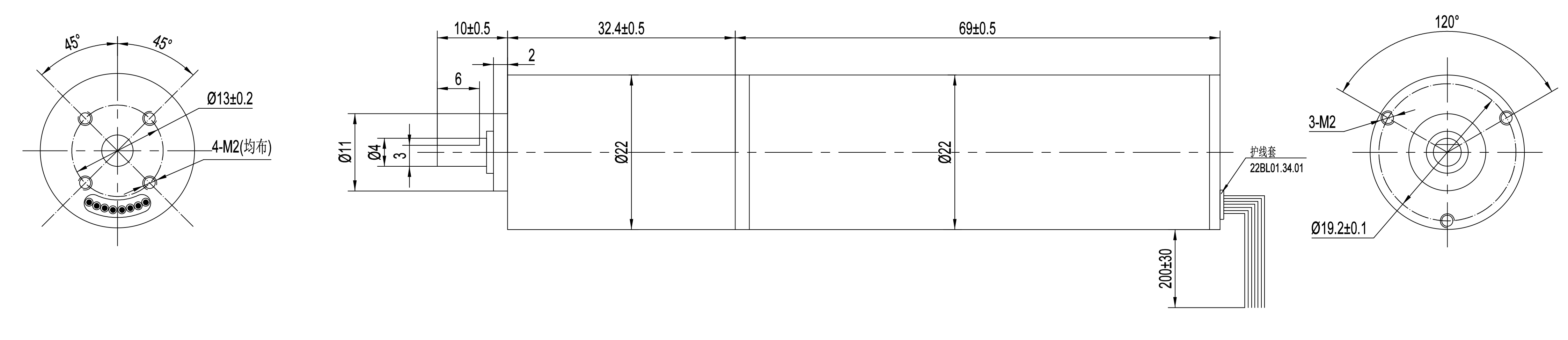

| Model | Gear Ratio | Gearbox Diameter | Number of Poles | Number of Phases | Rated Voltage (VDC) | Rated Torque (N.M) | Rated Speed (RPM) | Rated Current (Amps) | Output Power (Watts) | Gearbox Height(mm) | Motor Height(mm) | Total Weight(KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22BL202AG16 | 1/16 | 22 | 4 | 3 | 24 | 0.25 | 300 | 0.6 | 7.9 | 32.4 | 69 | 0.65 |
| 22mm Planetary Gearbox | |||
|---|---|---|---|
| Gear Ratio | Intermittent Permissible Load (Nm) | Length (mm) | Number of Reduction Stages |
| 1/4 | 0.3 | 13.9 | 1 |
| 1/4.75 | |||
| 1/16 | 1.2 | 32.4 | 2 |
| 1/19 | |||
| 1/22 | |||
| 1/26 | |||
| 1/64 | 2.5 | 43.9 | 3 |
| 1/76 | |||
| 1/64 | |||
| 1/104 | |||
| 1/121 | |||
| 1/144 | |||
| 1/104 | 1.2 | 22.5 | 3 |
