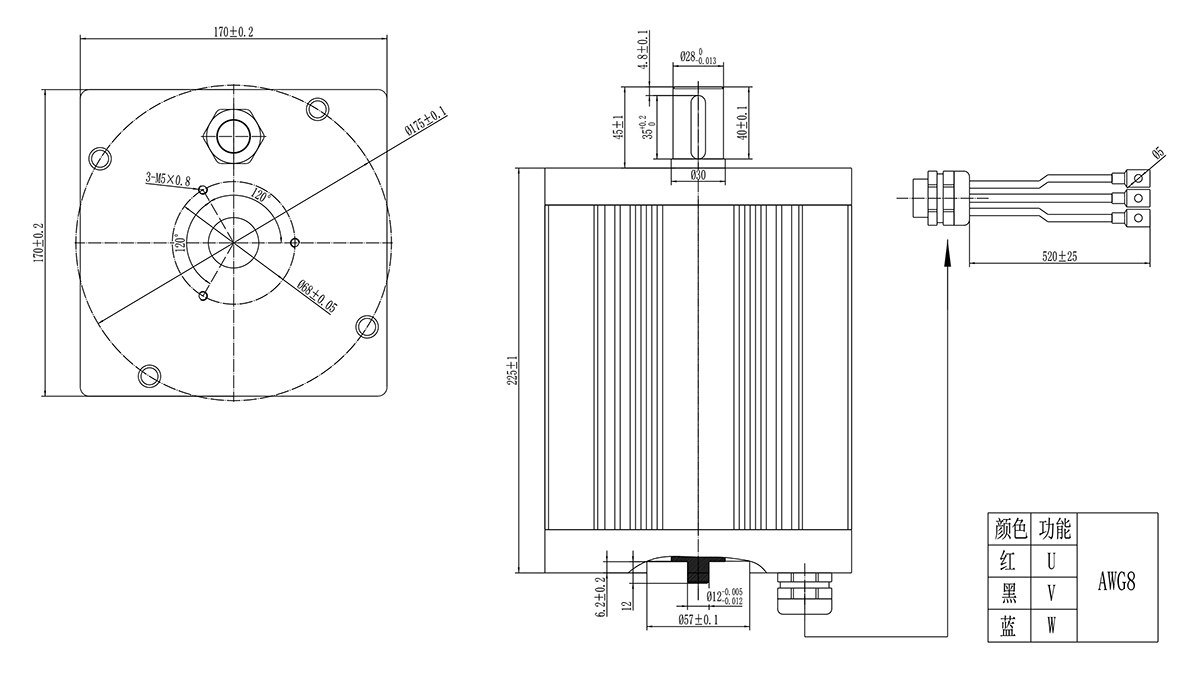

Inquire Now Contact Us| 型号 | MANUFACTUER MODEL | ES17005G-25D11-XXX |
|---|---|---|
| 绝缘等级 | NSULATION CLASS | F |
| 反馈装置 | FEEDBACK DEVICE | |
| 防护等级 | PROTECTION LEVEL | IP55 |
| 型号 | MANUFACTUER MODEL | ES17005G-25D11-XXX |
|---|---|---|
| 极数 | No.OF POLES | 8 |
| 直流电压 | DC LINK VOLTAGE | 48 VDC |
| 额定功率 | RATED POWER | 2500W |
| 额定扭矩 | RATED TORQUE | 22N.m |
| 额定速度 | RATED SPEED | 1100 RPM |
| 额定电流 | RATED CURRENT | 65 A |
| 最大扭矩 | MAXIMUM TORQUE | 43Nm |
| 阻力线 | RESISTANCE LINE-LINE | 0.032Ω |
| 电感线 | INDUCTANCE LINE-LINE | 0.52mH |
| 电时间常数 | ELECTRICAL TIME CONSTANT | 2ms |
| 机械时间常数 | MECHANICAL TIME CONSTANT | 1.8ms |
| 电压常数 | VOLTAGE CONSTANT | 24.2 V/KRPM |
| 扭矩常数 | TORQUE CONSTANT | 0.355Nm/A |
| 工作职责 | WORK DUTY | S9 |
| 转子转动惯量 | ROTOR MOMENT OF INERTIA | Kg.m² |
| 绝缘等级 | INSULATION CLASS | F |
| 最大径向力 | MAX..RADIAL FORCE | TBD N |
| 最大轴向力 | MAX..AXIAL FORCE | TBD N |
| 重量 | WEIGHT | 20 KG |
| 反馈装置 | FEEDBACK DEVICE | |
| 防护等级 | PROTECTION LEVEL | IP55 |
