Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 最高温升 | Temperature Rise | 80 ℃ Max |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 介电强度 | Dielectric Strength | 500VAC 1 minute |
| Model | Step Angle (°) | Body Length L (mm) | Phase Voltage (V) | Phase Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.m) | Lead Wires (NO.) | Moment of Inertia (kg・cm²) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 85BYGH450A-001 | 1.8 | 75 | 4.4 | 2 | 2.2 | 10 | 2.1 | 8 | 1.4 | 1.7 |
| 85BYGH450A-002 | 1.8 | 75 | 3 | 3 | 1 | 4.4 | 2.1 | 8 | 1.4 | 1.7 |
| 85BYGH450B-002 | 1.8 | 113 | 6.4 | 2 | 3.2 | 12 | 4.1 | 8 | 2.7 | 2.8 |
| 85BYGH450B-004-01 | 1.8 | 113 | 2.48 | 3.5 | 0.53 | 6.5 | 6 | 4 | 2.7 | 2.8 |
| 85BYGH450B-008 | 1.8 | 113 | 2.5 | 6 | 0.43 | 2.5 | 4.1 | 8 | 2.7 | 2.8 |
| 85BYGH450C-001 | 1.8 | 151 | 7.8 | 2 | 3.9 | 20 | 6.4 | 8 | 3.6 | 3.7 |
| 85BYGH450C-012 | 1.8 | 151 | 5.7 | 3 | 1.9 | 22 | 9.3 | 4 | 3.6 | 3.7 |
| 85BYGH450D-002 | 1.8 | 94 | 3.2 | 4 | 0.8 | 3.5 | 4.3 | 8 | 1.7 | 2.1 |
| 85BYGH450D-007 | 1.8 | 94 | 6.4 | 2 | 3.2 | 15 | 4.4 | 8 | 1.7 | 2.1 |
*The above are representative products; derivative products can be customized according to customer requirements.

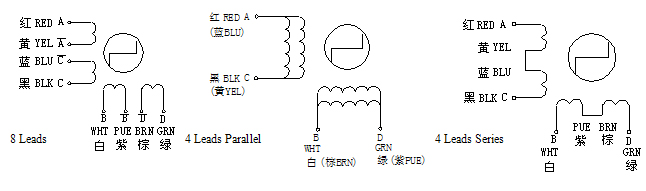

Wiring Diagram:
