We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.
Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 220N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 60N |

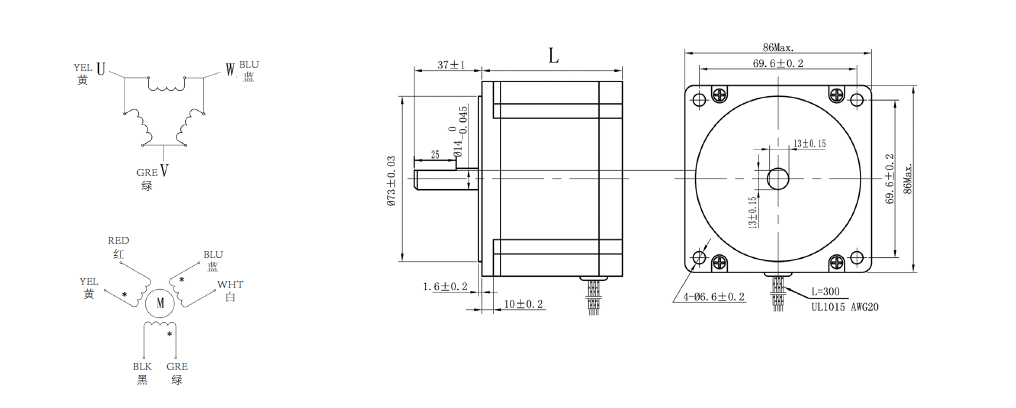

| Model | Step Angle(°/Step) | Lead Wires(NO.) | Voltage(V) | Current(A/Phase) | Resistance(Ω/Phase) | Inductance(mH/Phase) | Holding Torque(n.m) | Body LengthL(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 85BYGH350A-001 | 1.2 | 3 | 3.1 | 3.1 | 1.0 | 4.1 | 2.0 | 68 | 1.7 |
| 85BYGH350A-002 | 1.2 | 3 | 7.4 | 1.75 | 4.25 | 12.3 | 2.3 | 68 | 1.7 |
| 85BYGH350B-001-17 | 1.2 | 3 | 3.1 | 5.8 | 0.53 | 2.5 | 3.2 | 97 | 2.9 |
| 85BYGH350B-002-02 | 1.2 | 3 | 10.8 | 2.0 | 5.4 | 23.0 | 4.5 | 97 | 2.9 |
| 85BYGH350C-001-02 | 1.2 | 3 | 3.7 | 7.0 | 0.53 | 2.5 | 5.6 | 127 | 4.0 |
| 85BYGH350C-003 | 1.2 | 3 | 21.0 | 3.5 | 6.0 | 25.0 | 6.8 | 127 | 4.0 |
*The above are representative products; derivative products can be customized according to customer requirements.
