Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 75N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 15N |

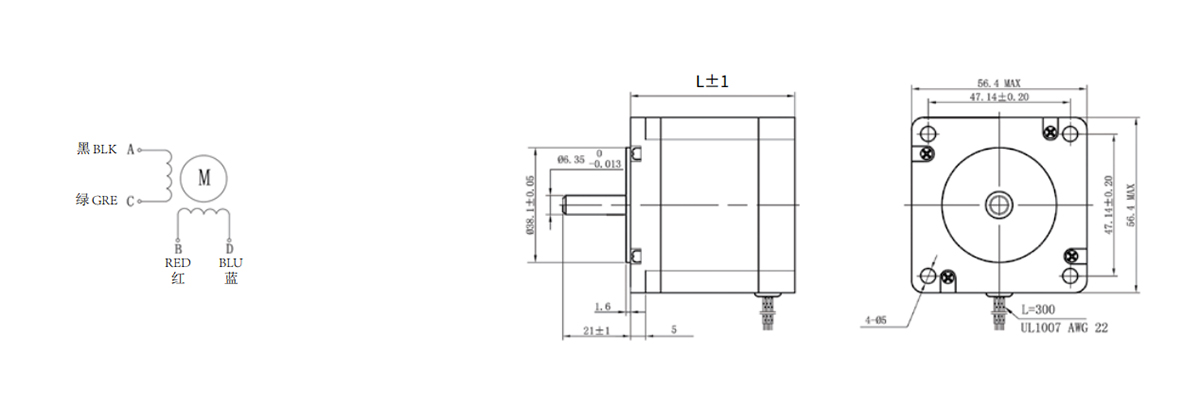

| Model | Step Angle(°/Step) | Lead Wires(NO.) | Voltage(V) | Current(A/Phase) | Resistance(Ω/Phase) | Inductance(mH/Phase) | Holding Torque(g.cm) | Body Length L(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 57HN41-001-01 | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.4 | 9.5 | 41 | 0.43 |
| 57HN41-003-04 | 1.8 | 4 | 7.0 | 1.0 | 7.0 | 14.7 | 9.0 | 41 | 0.43 |
| 57HN46-005A | 1.8 | 4 | 2.3 | 4.2 | 0.55 | 1.5 | 10.6 | 46 | 0.54 |
| 57HN46-003A | 1.8 | 4 | 8.2 | 1.0 | 8.2 | 18 | 10.5 | 46 | 0.54 |
| 57HN51-003A | 1.8 | 4 | 1.5 | 3.0 | 0.5 | 1.4 | 9.5 | 51 | 0.63 |
| 57HN51-005 | 1.8 | 4 | 4.0 | 2.0 | 2.0 | 6.5 | 12 | 51 | 0.63 |
| 57HN56-002 | 1.8 | 4 | 9.0 | 2.5 | 3.6 | 11 | 15 | 56 | 0.68 |
| 57HN56-005-02 | 1.8 | 4 | 6.8 | 1.0 | 6.8 | 24 | 12 | 56 | 0.68 |
| 57HN67-001-15 | 1.8 | 4 | 5.76 | 1.6 | 3.6 | 12 | 19 | 67 | 0.70 |
| 57HN67-004-07 | 1.8 | 4 | 1.5 | 3.0 | 0.5 | 1.8 | 14 | 67 | 0.70 |
*The above are representative products; derivative products can be customized according to customer requirements.
*This product is compatible with 42,52,56 gear reducers.
