Full-range Micro Motor Solutions
We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.
Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 75N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 15N |

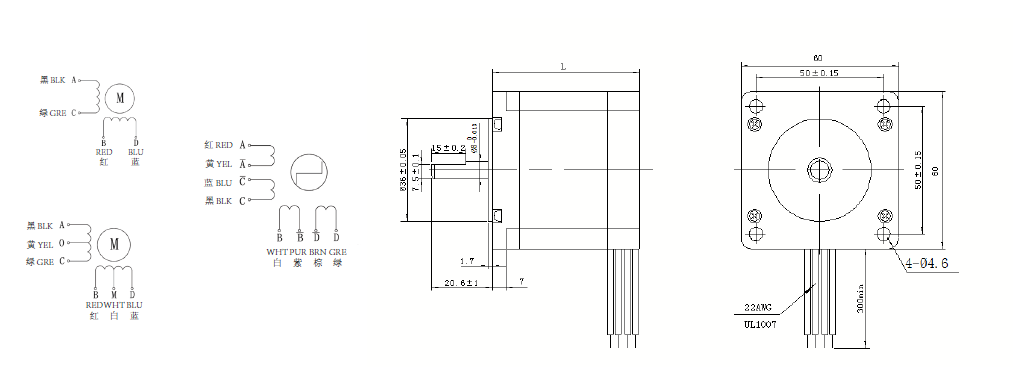

| Model | Step Angle(°/Step) | Lead Wires(NO.) | Voltage(V) | Current(A/Phase) | Resistance(Ω/Phase) | Inductance(mH/Phase) | Holding Torque(kg.cm) | Body LengthL(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 60BYGH402-13A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.6 | 10 | 56 | 0.77 |
| 60BYGH410-05A | 1.8 | 4 | 6.0 | 1.0 | 6.0 | 16 | 12.5 | 56 | 0.77 |
| 60BYGH502-03A | 1.8 | 4 | 5.32 | 1.4 | 3.8 | 10 | 12.5 | 64 | 1.00 |
| 60BYGH500 | 1.8 | 6 | 3.6 | 1.5 | 8.4 | 8.0 | 12.5 | 64 | 1.00 |
| 60BYGH805-56 | 1.8 | 4 | 2.8 | 4.0 | 0.8 | 3.5 | 23.5 | 87 | 1.34 |
| 60BYGH808A | 1.8 | 4 | 4.5 | 3.0 | 1.5 | 5.0 | 26 | 87 | 1.34 |
*The above are representative products; derivative products can be customized according to customer requirements.
*This product is compatible with 52&56 gear reducers.
