Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 介电强度 | Dielectric Strength | 500VAC 1 minute |
| Model | Step Angle (°) | Body Length L (mm) | Phase Voltage (V) | Phase Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Static Torque (kg.cm) | Number of Leads (No.) | Moment of Inertia (g・cm²) | Holding Torque (kg.cm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 57BYG001-02 | 1.8 | 41 | 12.2 | 0.38 | 32 | 30 | 3.0 | 6 | 57 | 0.18 | 0.54 |
| 57BYG003-01 | 1.8 | 41 | 12 | 0.6 | 20 | 18 | 3.3 | 6 | 57 | 0.18 | 0.54 |
| 57BYG006-01 | 1.8 | 41 | 3.96 | 1.1 | 3.6 | 3.5 | 3.0 | 8 | 57 | 0.18 | 0.54 |
| 57BYG202-04 | 1.8 | 51 | 12.2 | 0.38 | 32 | 30 | 3.5 | 6 | 110 | 0.18 | 0.54 |
| 57BYG220 | 1.8 | 51 | 3.3 | 1.5 | 2.2 | 8.5 | 5.8 | 4 | 110 | 0.35 | 0.6 |
| 57BYG241 | 1.8 | 51 | 1.68 | 3 | 0.56 | 1.8 | 6.0 | 4 | 110 | 0.35 | 0.6 |
| 57BYG402 | 1.8 | 57 | 12 | 0.6 | 20 | 27 | 5.8 | 6 | 135 | 0.35 | 0.6 |
| 57BYG410 | 1.8 | 57 | 2.4 | 2.4 | 1.0 | 2.0 | 6.0 | 6 | 135 | 0.42 | 0.65 |
| 57BYG424 | 1.8 | 57 | 3.2 | 1 | 3.2 | 5.5 | 4.5 | 4 | 135 | 0.42 | 0.65 |
| 57BYG601-01 | 1.8 | 76 | 12 | 0.6 | 20 | 25 | 9.0 | 6 | 200 | 0.42 | 0.65 |
| 57BYG606 | 1.8 | 76 | 5.4 | 1.5 | 3.6 | 6.2 | 8.8 | 6 | 200 | 0.72 | 0.95 |
| 57BYG621 | 1.8 | 76 | 3.96 | 2.2 | 1.8 | 6.0 | 12.5 | 4 | 200 | 0.72 | 0.95 |
| 57BYG100-001 | 1.8 | 100 | 2.1 | 2 | 1.1 | 4.5 | 12 | 4 | 300 | 0.95 | 1.25 |
*This product is compatible with 42,52,56 gear reducers.

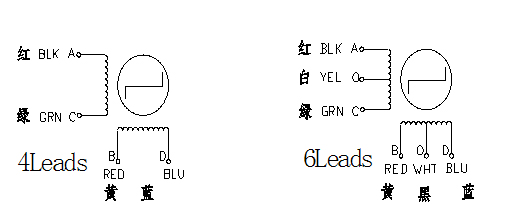

Wiring Diagram:
