Full-range Micro Motor Solutions
We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.
Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 介电强度 | Dielectric Strength | 500VAC 1 minute |
| Model | Step Angle (°) | Body Length L (mm) | Phase Voltage (V) | Phase Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Static Torque (N.m) | Lead Wires (No.) | Moment of Inertia (g・cm²) | Holding Torque (g.cm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42BYGHW205-03 | 1.8 | 34 | 11 | 0.3 | 36.6 | 22 | 0.2 | 6 | 34 | 200 | 0.2 |
| 42BYGHW208-04 | 1.8 | 34 | 12 | 0.4 | 30 | 37 | 0.31 | 4 | 34 | 200 | 0.2 |
| 42BYGHW213-06-01 | 1.8 | 34 | 11.7 | 0.6 | 19.5 | 13.5 | 0.28 | 5 | 34 | 200 | 0.2 |
| 42BYGHW602-02 | 1.8 | 40 | 11.76 | 0.4 | 29.4 | 21.8 | 0.29 | 6 | 54 | 220 | 0.24 |
| 42BYGHW607-01 | 1.8 | 40 | 3.7 | 1.2 | 3.11 | 2.9 | 0.31 | 6 | 54 | 220 | 0.24 |
| 42BYGHW609 | 1.8 | 40 | 3.4 | 1.7 | 2 | 3 | 0.4 | 4 | 54 | 220 | 0.24 |
| 42BYGHW801-05 | 1.8 | 48 | 12 | 0.4 | 31 | 25.4 | 0.4 | 6 | 68 | 280 | 0.34 |
| 42BYGHW804 | 1.8 | 48 | 3.6 | 1.2 | 3 | 5 | 0.48 | 4 | 68 | 280 | 0.34 |
| 42BTGHW811 | 1.8 | 48 | 3.12 | 2.5 | 1.25 | 1.8 | 0.5 | 4 | 68 | 280 | 0.34 |
*The above are representative products; derivative products can be customized according to customer requirements.
*Compatible with 42, 52, 56 gearboxes.

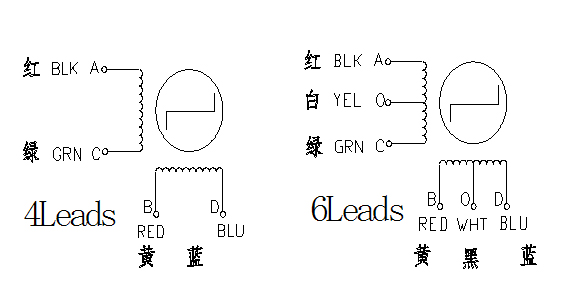

Wiring Diagram:
