Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 28N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 10N |

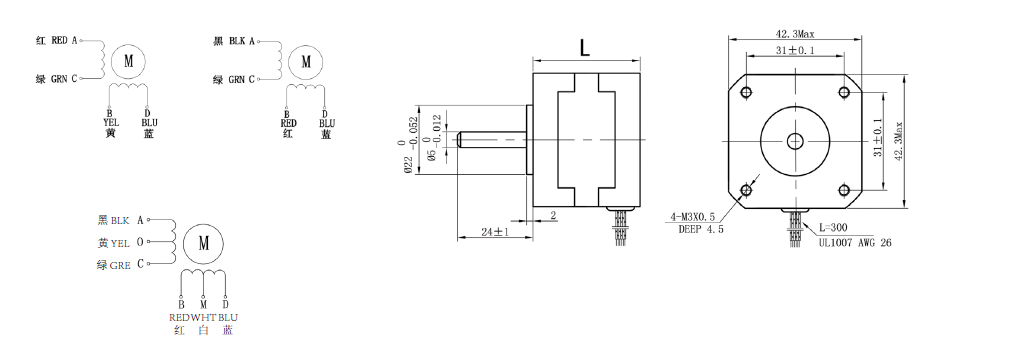

| Model | Step Angle(°/Step) | Lead Wires(NO.) | Voltage(V) | Current(A/Phase) | Resistance(Ω/Phase) | Inductance(mH/Phase) | Holding Torque(g.cm) | Body LengthL(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGH208-52A | 1.8 | 4 | 12 | 0.4 | 30 | 42 | 2500 | 34 | 0.20 |
| 42BYGH243-03 | 1.8 | 4 | 2.6 | 1 | 2.6 | 3.2 | 1800 | 34 | 0.20 |
| 42BYGH622-28A | 1.8 | 4 | 4.8 | 1 | 4.8 | 6.0 | 2900 | 40 | 0.24 |
| 42BYGH613-68A | 1.8 | 4 | 2.5 | 1.7 | 1.5 | 2.5 | 3500 | 40 | 0.24 |
| 42BYGH705-07 | 1.8 | 4 | 12 | 0.3 | 40 | 80 | 4000 | 44 | 0.30 |
| 42BYGH721A | 1.8 | 6 | 10 | 0.25 | 40 | 36 | 2000 | 44 | 0.30 |
| 42BYGH801-36 | 1.8 | 6 | 12 | 0.4 | 30 | 22 | 3800 | 48 | 0.34 |
| 42BYGH872A | 1.8 | 4 | 2.8 | 1.7 | 1.65 | 2.8 | 4500 | 48 | 0.34 |
| 42BYGH910-02 | 1.8 | 4 | 5.1 | 1.5 | 3.4 | 8.0 | 8500 | 60 | 0.49 |
| 42BYGH905-13 | 1.8 | 4 | 3.15 | 1.5 | 2.1 | 5.0 | 6800 | 60 | 0.49 |
*The above are representative products; derivative products can be customized according to customer requirements.
*This product is compatible with 36 and 42 gear reducers.
