Full-range Micro Motor Solutions
We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.
Inquire Now Contact Us| 步距角精度 | Step Accuracy | ± 5% |
| 温升 | Temperature Rise | 80 ℃ Max |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 28N (20mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 10N |

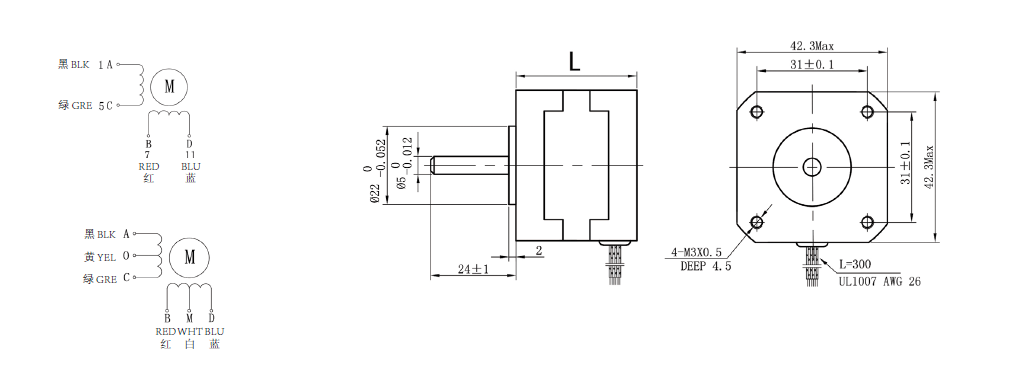

| Model | Step Angle(°/Step) | Lead Wires(NO.) | Voltage(V) | Current(A/Phase) | Resistance(Ω/Phase) | Inductance(mH/Phase) | Holding Torque(g.cm) | Body LengthL(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGHM203 | 0.9 | 4 | 10 | 0.5 | 20 | 40 | 2100 | 34 | 0.20 |
| 42BYGHM213-07A | 0.9 | 4 | 8 | 1 | 8.0 | 13 | 2200 | 34 | 0.20 |
| 42BYGHM607-16 | 0.9 | 4 | 2.6 | 1.7 | 1.5 | 3.2 | 3200 | 40 | 0.24 |
| 42BYGHM619-08 | 0.9 | 4 | 11.2 | 0.4 | 28 | 60 | 2800 | 40 | 0.24 |
| 42BYGHM805 | 0.9 | 4 | 3.5 | 1 | 3.5 | 7.6 | 3700 | 48 | 0.34 |
| 42BYGHM810 | 0.9 | 4 | 2.4 | 2.4 | 1.0 | 1.8 | 4800 | 48 | 0.34 |
*The above are representative products; derivative products can be customized according to customer requirements.
*This product is compatible with 36 and 42 gear reducers.
