Full-range Micro Motor Solutions
We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.

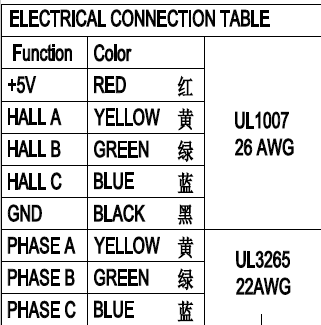

Inquire Now Contact Us| 绕线接法 | Winding Type | Star |
| 霍尔角度 | Hall effect angle | 120° Electrical angle |
| 绝缘等级 | Insulation Class | B |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |

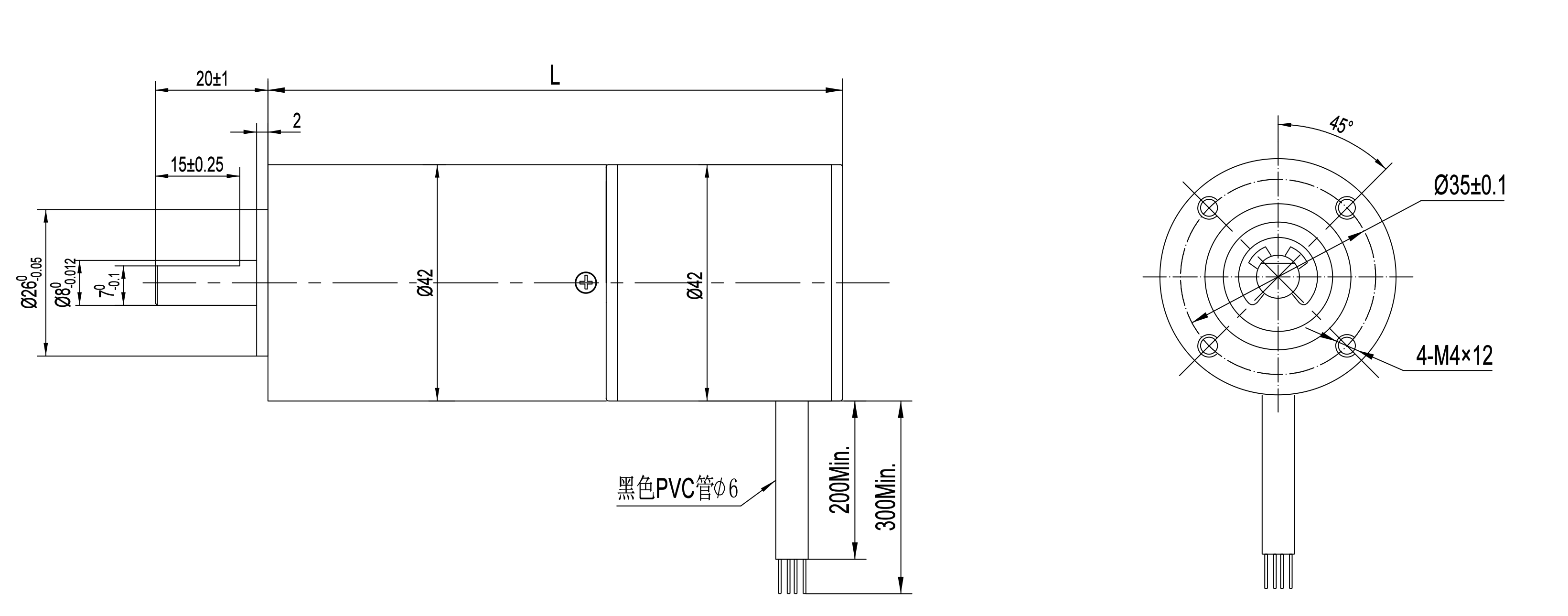

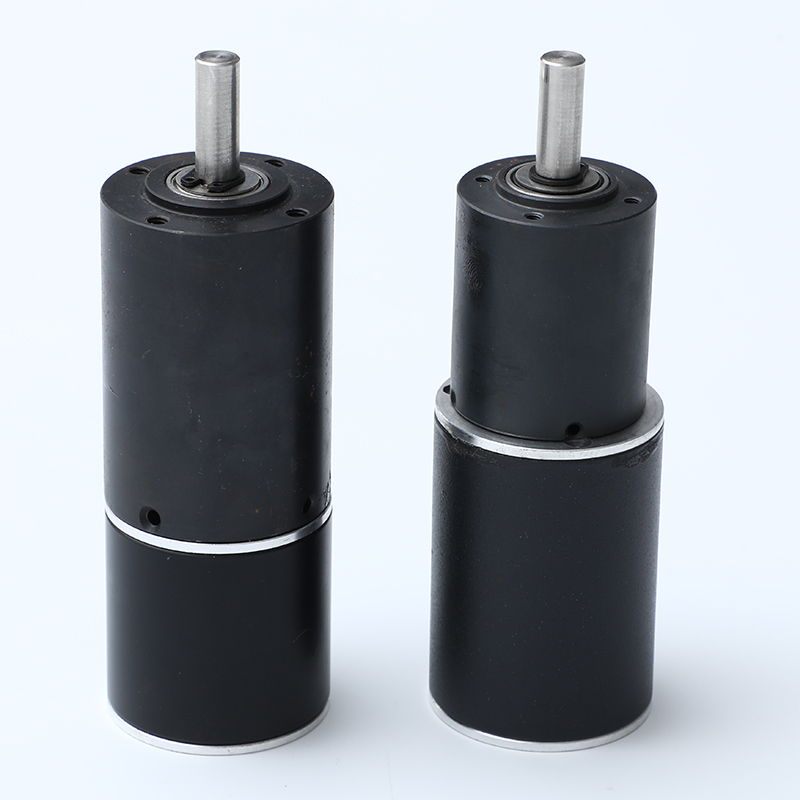

| Model | Gear Ratio | Gearbox Diameter | Number of Poles | Number of Phases | Rated Voltage(VDC) | Rated Torque (N.M) | Rated Speed (RPM) | Rated Current (Amps) | Output Power (Watts) | Gearbox Height(mm) | Motor Height(mm) | Total Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42BLY01C-004AG112 | 1/112 | 42 | 4 | 3 | 24 | 2.50 | 26 | 1.3 | 7 | 60.1 | 42 | 0.52 |
| 42BLY203-002AG25 | 1/25 | 42 | 4 | 3 | 24 | 1.44 | 120 | 2.0 | 18 | 46.3 | 60 | 0.60 |
| 42BLY302-005AG54 | 1/54 | 42 | 4 | 3 | 24 | 4.50 | 55 | 3.0 | 26 | 60.1 | 78 | 0.83 |
| 行星齿轮箱42mm | |||
|---|---|---|---|
| Gear Ratio | Intermittent Permissible Load (Nm) | Length (mm) | Reduction Stages |
| 1/4 | 3.0 | 32.5 | 1 |
| 1/6 | |||
| 1/15 | 12 | 46.3 | 2 |
| 1/18 | |||
| 1/25 | |||
| 1/36 | |||
| 1/54 | 25 | 60.1 | 3 |
| 1/65 | |||
| 1/90 | |||
| 1/112 | |||
| 1/155 | |||
| 1/216 | 30 | 60.1 | 3 |
