Inquire Now Contact Us| 绕线接法 | Winding Type | Star |
| 霍尔角度 | Hall effect angle | 120° Electrical angle |
| 绝缘等级 | Insulation Class | B |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 绝缘强度 | Dielectric Strength | 500VAC 1 minute |

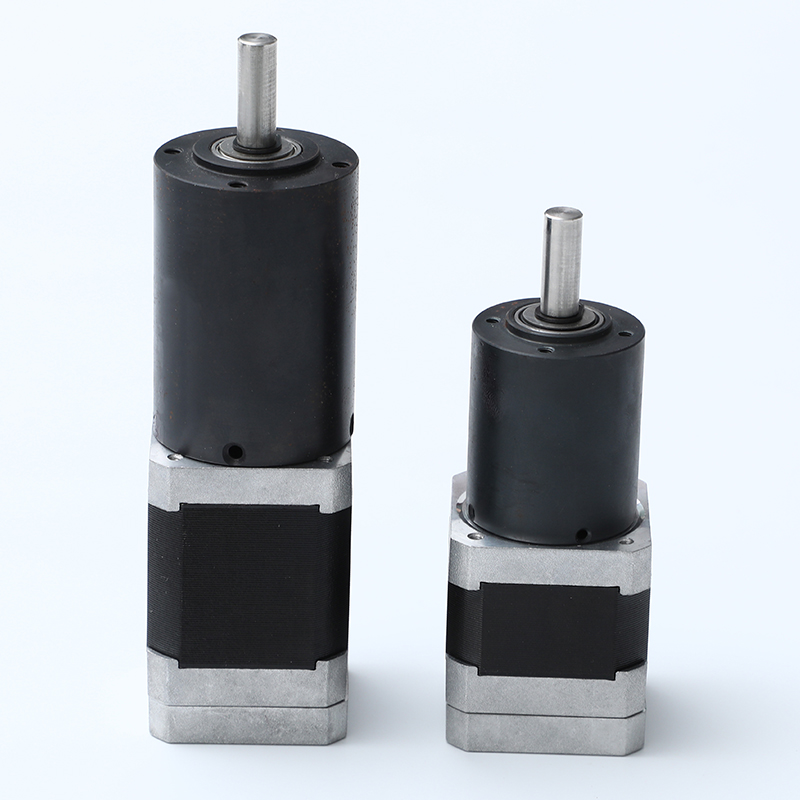

| Model | Gear Ratio | Gearbox Diameter | Number of Poles | Number of Phases | Rated Voltage(VDC) | Rated Torque (N.M) | Rated Speed (RPM) | Rated Current (Amps) | Output Power (Watts) | Gearbox Height(mm) | Motor Height(mm) | Total Weight(KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42BLF01-027AG16 | 1/16 | 36 | 8 | 3 | 24 | 0.7 | 250 | 1.7 | 18 | 32.4 | 47 | 0.50 |
| 42BLF02-035AG20 | 1/20 | 36 | 8 | 3 | 24 | 1.87 | 200 | 3.0 | 39 | 32.4 | 63 | 0.65 |
| 42BLF03-018AG5 | 1/5 | 36 | 8 | 3 | 24 | 0.76 | 800 | 4.4 | 78 | 24.8 | 79.2 | 0.75 |
| 42BLF01-031AG54 | 1/54 | 42 | 8 | 3 | 24 | 2.2 | 74 | 1.5 | 17 | 60.1 | 47 | 0.27 |
| 36mm Planetary Gearbox | |||
|---|---|---|---|
| Gear Ratio | Intermittent Permissible Load (Nm) | Length (mm) | Reduction Stages |
| 1/4 | 1.0 | 24.8 | 1 |
| 1/5 | |||
| 1/16 | 3.5 | 32.4 | 2 |
| 1/20 | |||
| 1/25 | |||
| 1/53 | 7.5 | 41.9 | 3 |
| 1/76 | |||
| 1/94 | |||
| 1/117 | |||
| 42mm Planetary Gearbox | |||
| Gear Ratio | Intermittent Permissible Load (Nm) | Length (mm) | Reduction Stages |
| 1/4 | |||
| 1/6 | |||
| 1/15 | 12 | 46.3 | 2 |
| 1/18 | |||
| 1/25 | |||
| 1/36 | |||
| 1/54 | 25 | 60.1 | 3 |
| 1/65 | |||
| 1/90 | |||
| 1/112 | |||
| 1/155 | |||
| 1/216 | 30 | 60.1 | 3 |
