Inquire Now Contact Us| 绝缘等级 | Insulation Class | F |
| 防护等级 | Protection Level | IP65 |
| 环境要求 | Environment Requirement | 工作/Work: 0℃~+55℃ 保存/Preserve： 20℃～80℃ 工作或保存/Work or Preserve: 90%RH （无结露/No Condensation) 海拔1000米/ Above Sea Level 1000m 振动/ Vibration： 5.88/S 2.10-60Hz |

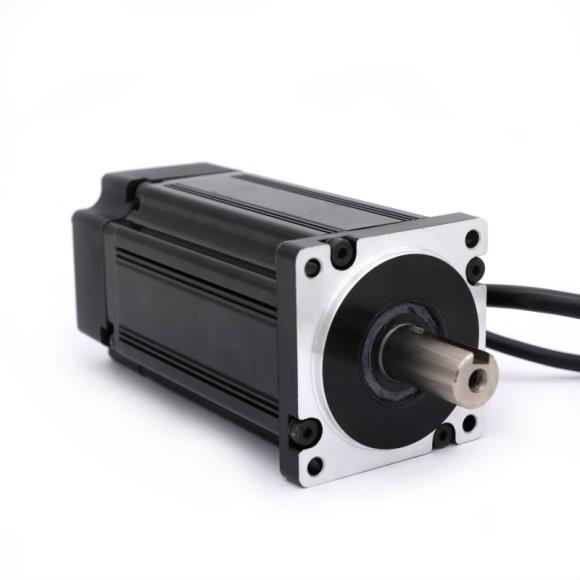

| Model | Rated Power(Watts) | Rated Voltage | Rated Current(Amps) | Rated speed (RPM) | Rated Torque(N.M) | Peak Torque (N.M) | Back EMF (V/kRPM) | Torque Constant (N.M/Amps) | Rotor inertia(Kg.cm²) | Winding Resistance (Between Lines) (Ω) | Winding Inductance (Between Lines)(mH) | Electrical Time Constant(Ms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ES6004A-40S30B1 | 400 | 310 | 2.65 | 3000 | 1.27 | 3.81 | 32 | 0.48 | 0.67 | 3.5 | 8.0 | 1.3 |
| ES6004A-40S30B2 | 400 | 310 | 2.65 | 3000 | 1.27 | 3.81 | 32 | 0.48 | 0.67 | 3.5 | 8.0 | 1.3 |
| ES6005A-40D30A2 | 400 | 310 | 2.65 | 3000 | 1.27 | 3.81 | 32 | 0.48 | 0.67 | 3.7 | 12.0 | 1.3 |
| ES6005A-40D30L1 | 400 | 310 | 2.65 | 3000 | 1.27 | 3.81 | 32 | 0.48 | 0.67 | 3.7 | 12.0 | 1.3 |
| ES6005A-40D30L2 | 400 | 310 | 2.65 | 3000 | 1.27 | 3.81 | 32 | 0.48 | 0.67 | 3.7 | 12.0 | 1.3 |
| ES6005A-40D30A1 | 400 | 310 | 2.65 | 3000 | 1.27 | 3.81 | 32 | 0.48 | 0.67 | 3.7 | 12.0 | 1.3 |
| ES6005A-20S30N1-T | 200 | 310 | 1.6 | 3000 | 0.64 | 1.91 | 32 | 0.45 | 0.42 | 8.8 | 24.0 | 1.3 |
| ES6005A-20S30N2-T | 200 | 310 | 1.6 | 3000 | 0.64 | 1.91 | 32 | 0.45 | 0.42 | 8.8 | 24.0 | 1.3 |
| ES6005A-20D30L1 | 200 | 310 | 1.6 | 3000 | 0.64 | 1.91 | 32 | 0.45 | 0.42 | 8.8 | 24.0 | 1.3 |
| ES6005A-20D30L2 | 200 | 310 | 1.6 | 3000 | 0.64 | 1.91 | 32 | 0.45 | 0.42 | 8.8 | 24.0 | 1.3 |
| ES6005A-20D30A1 | 200 | 310 | 1.6 | 3000 | 0.64 | 1.91 | 32 | 0.45 | 0.42 | 8.8 | 24.0 | 1.3 |
| ES6005A-20D30A2 | 200 | 310 | 1.6 | 3000 | 0.64 | 1.91 | 32 | 0.45 | 0.42 | 8.8 | 24.0 | 1.3 |
| 低压伺服 ES6004H-20S30B1 | 200 | 36 | 9 | 3000 | 0.64 | 1.92 | 0.32 | 0.25 | 0.5 | 1.3 | ||
| 低压伺服 ES6004G-40S30B1 | 400 | 48 | 12 | 3000 | 1.27 | 3.81 | 0.45 | 0.29 | 0.65 | 1.3 |
