Inquire Now Contact Us| 绕线接法 | Winding Type | Star |
| 霍尔角度 | Hall effect angle | 120° Electrical angle |
| 绝缘等级 | Insulation Class | B |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 绝缘强度 | Dielectric Strength | 600VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 220N(10mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 60N |
| Model | Poles | Phases | Rated Voltage(VDC) | Rated Torque(N.M) | Rated Speed(RPM) | Rated Current(Amps) | Output Power (Watts) | Peak Torque(N.M) | Peak Current(Amps) | Torque Constant(N.M/Amps) | Back EMF Constant(V/kRPM) | Body Length(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

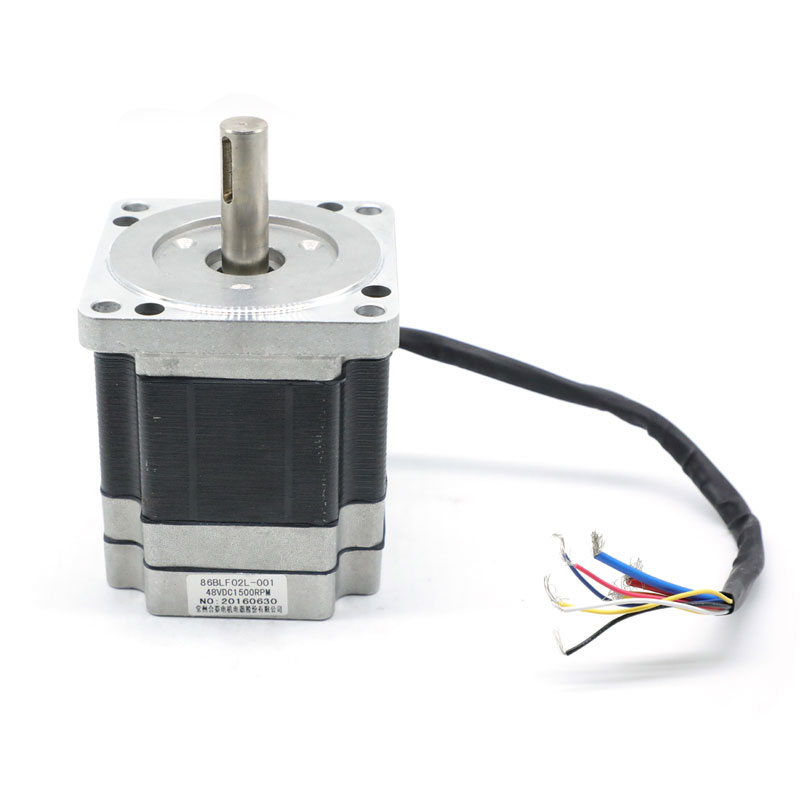

| 86BLF01 | 8 | 3 | 48 | 1.40 | 3000 | 12.17 | 439 | 4.20 | 36.5 | 0.115 | 12.0 | 94.0 | 2.99 |
| 86BLF02A | 8 | 3 | 48 | 1.05 | 3000 | 8.67 | 329 | 3.15 | 26.0 | 0.121 | 12.6 | 80.5 | 2.44 |
| 86BLF03 | 8 | 3 | 48 | 0.70 | 3000 | 5.33 | 220 | 2.10 | 16.0 | 0.130 | 13.7 | 67.0 | 1.78 |

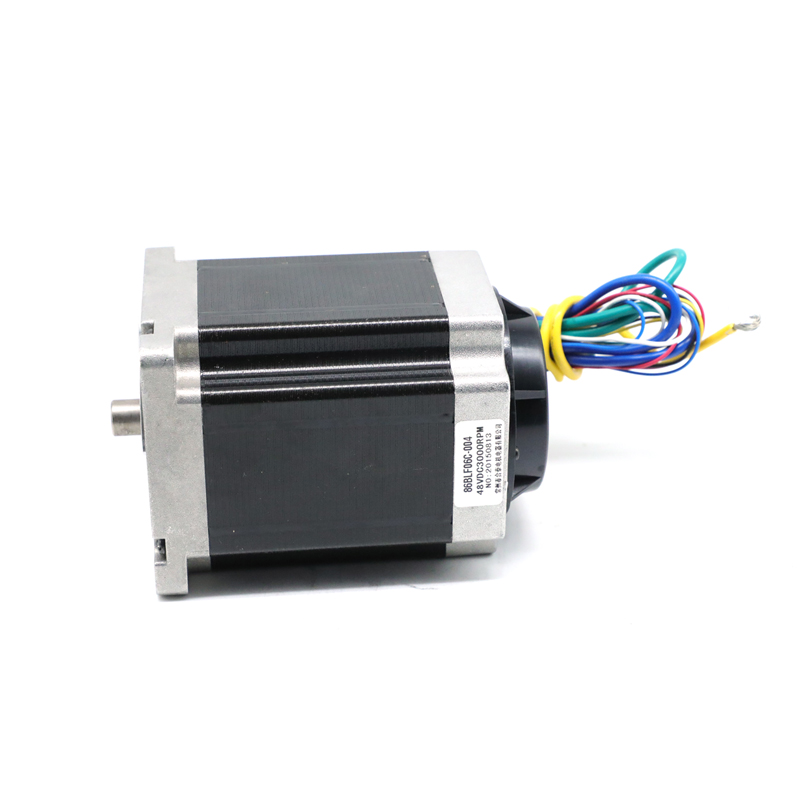

| 86BLF06C | 8 | 3 | 48 | 1.80 | 3000 | 16.33 | 565 | 5.40 | 49.0 | 0.110 | 12.0 | 107.5 | 3.39 |
| 86BLF07 | 8 | 3 | 48 | 2.10 | 3000 | 19.67 | 660 | 6.30 | 59.0 | 0.106 | 11.2 | 124.0 | 4.07 |
*The above are representative products; derivative products can be customized according to customer requirements.
