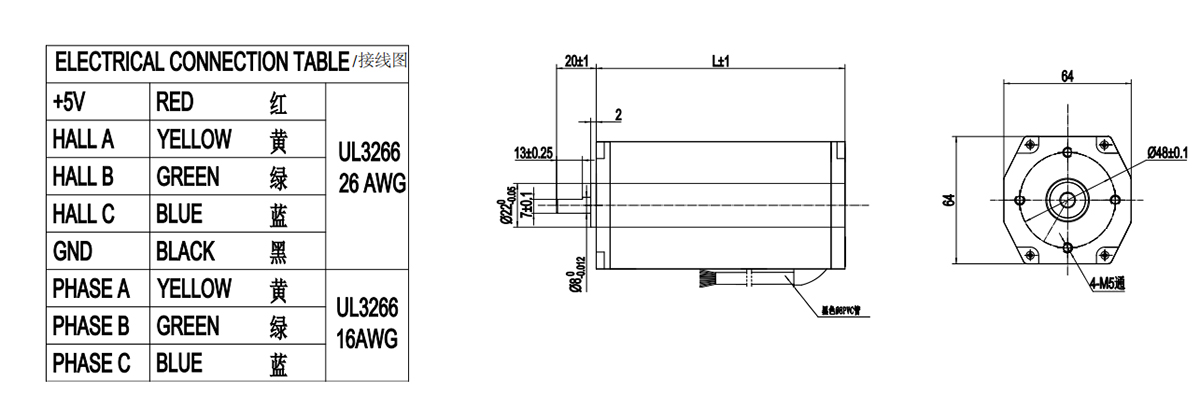

Inquire Now Contact Us| 绕线接法 | Winding Type | Star |
| 霍尔角度 | Hall effect angle | 120° Electrical angle |
| 绝缘等级 | Insulation Class | B |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 绝缘强度 | Dielectric Strength | 600VAC 1 minute |
| Model | Poles | Phases | Rated Voltage(VDC) | Rated Speed(RPM) | Rated Torque(N.M) | Rated Current(Amps) | Output Power(Watts) | Peak Torque(N.M) | Peak Current(Amps) | Torque Constant (\(K_t\)(N.M/Amps) | Back EMF Constant(V/kRPM) | Moment of Inertia(g.c㎡) | Body Length(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65BLX01 | 8 | 3 | 24 | 4000 | 0.24 | 6 | 100 | 0.72 | 18 | 0.057 | 6 | 72 | 100 | 1.0 |
| 65BLX02 | 8 | 3 | 24 | 4000 | 0.43 | 8 | 180 | 1.29 | 24 | 0.057 | 6 | 128 | 125 | 1.5 |
| 65BLX03 | 8 | 3 | 24 | 4000 | 0.55 | 10 | 230 | 1.65 | 30 | 0.057 | 6 | 172 | 150 | 2.0 |
