Full-range Micro Motor Solutions
We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.
Inquire Now Contact Us| 绕线接法 | Winding Type | Star |
| 霍尔角度 | Hall effect angle | 120° Electrical angle |
| 绝缘等级 | Insulation Class | B |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 绝缘强度 | Dielectric Strength | 600VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 75N (10mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 15N |
| Model | Poles | Phases | Rated Voltage(VDC) | Rated Torque(N.M) | Rated Speed(RPM) | Rated Current(Amps) | Output Power(Watts) | Peak Torque (N.M) | Peak Current(Amps) | Torque Constant(N.M/Amps) | Back EMF Constant(V/kRPM) | Body Length(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

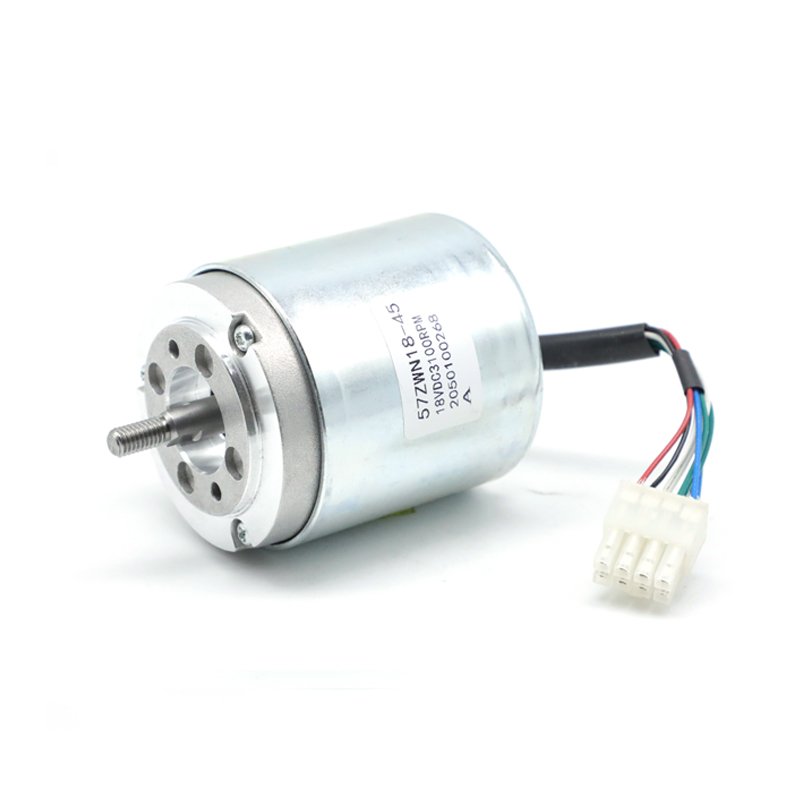

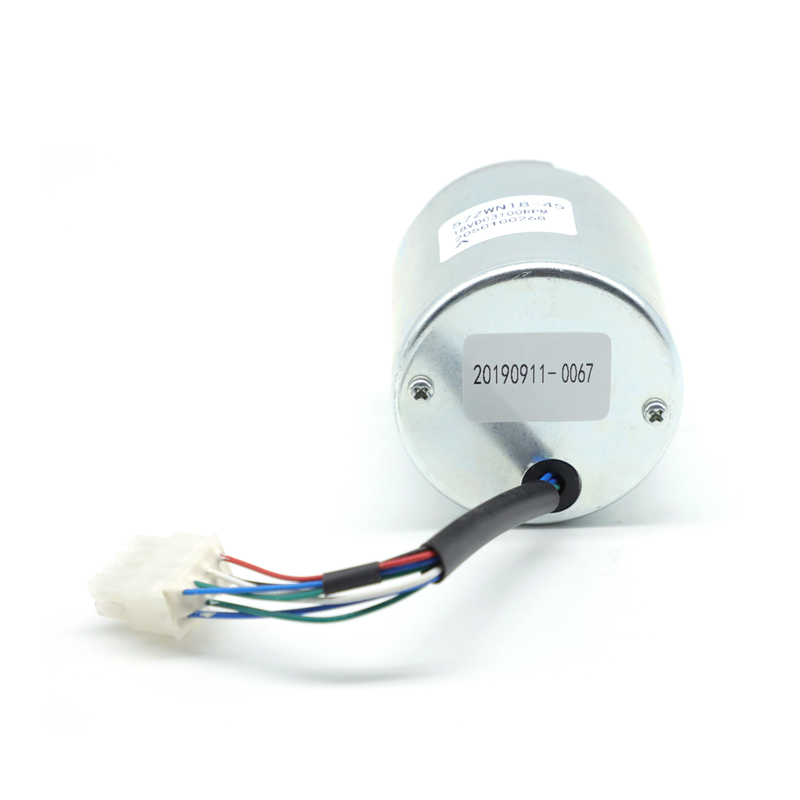

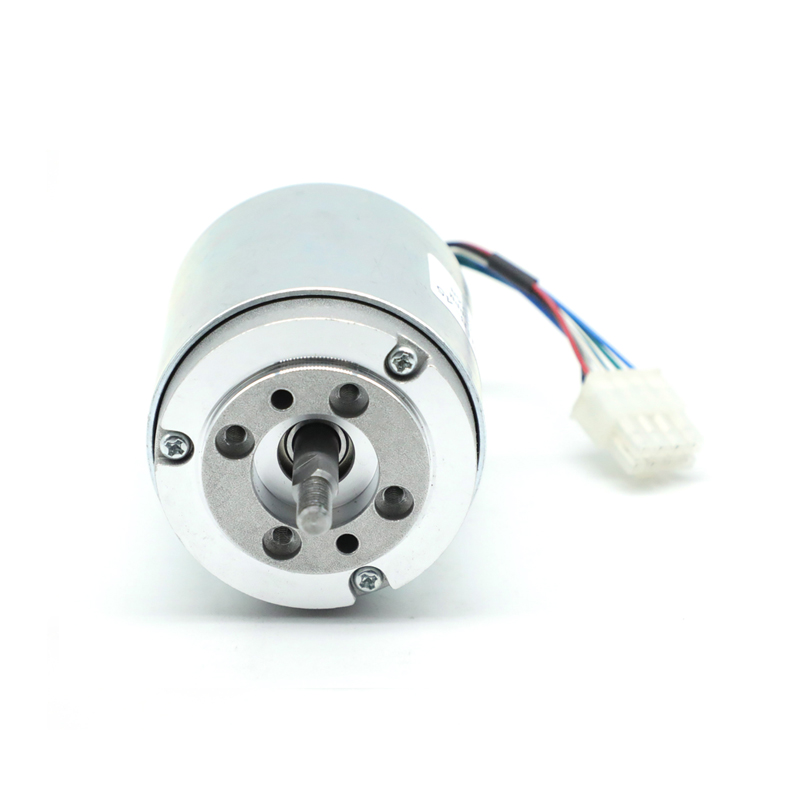

| 57BL317 | 4 | 3 | 18 | 0.14 | 3290±10% | 4 | 48 | 0.42 | 12 | 0.043 | 4.55 | 63.5 | 0.56 |
*The above are representative products; derivative products can be customized according to customer requirements.
