Full-range Micro Motor Solutions
We specialize in hybrid stepper motors, BLDC motors and stepper drivers, producing 3 million units annually. Our products serve automated equipment in printers, ticket printers, engravers, medical instruments, stage lighting and textile machinery.
Inquire Now Contact Us| 绕线接法 | Winding Type | Star |
| 霍尔角度 | Hall effect angle | 120° Electrical angle |
| 绝缘等级 | Insulation Class | B |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 绝缘强度 | Dielectric Strength | 600VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 75N (10mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 15N |
| Model | Poles | Phases | Rated Voltage(VDC) | Rated Torque(N.M) | Rated Speed(RPM) | Rated Current(Amps) | Output Power(Watts) | Peak Torque(N.M) | Peak Current(Amps) | Torque Constant(N.M/Amps) | Back EMF Constant(V/kRPM) | Body Length(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 57BL01G | 4 | 3 | 24 | 0.057 | 2500 | 0.77 | 15 | 0.17 | 2.3 | 0.074 | 7.75 | 41.5 | 0.35 |
| 57BL02A | 4 | 3 | 24 | 0.11 | 3000 | 1.87 | 34.5 | 0.33 | 5.6 | 0.059 | 6.2 | 46.5 | 0.44 |
| 57BL03B | 4 | 3 | 24 | 0.18 | 3000 | 3.17 | 56 | 0.54 | 9.5 | 0.057 | 5.9 | 56.5 | 0.56 |
| 57BL04A | 4 | 3 | 24 | 0.22 | 3000 | 3.67 | 69 | 0.66 | 11 | 0.060 | 6.3 | 66.5 | 0.67 |
| 57BL05A | 4 | 3 | 24 | 0.33 | 3000 | 5.33 | 104 | 0.99 | 16 | 0.062 | 6.5 | 86.5 | 0.95 |
| 57BL06 | 4 | 3 | 24 | 0.44 | 3000 | 7.00 | 138 | 1.32 | 21 | 0.063 | 6.6 | 106.5 | 1.18 |
*The above are representative products; derivative products can be customized according to customer requirements.
*This product is compatible with 42,52,56 gear reducers.

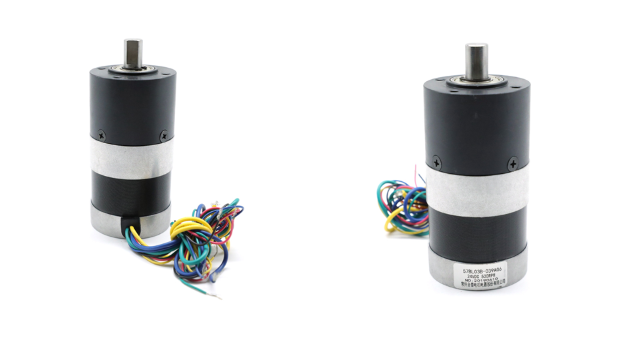

57BL03B-039AG6

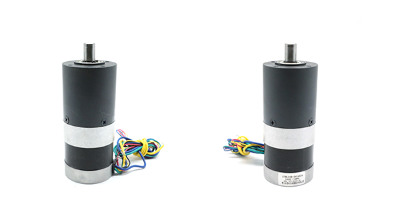

57BL03B-040AG15

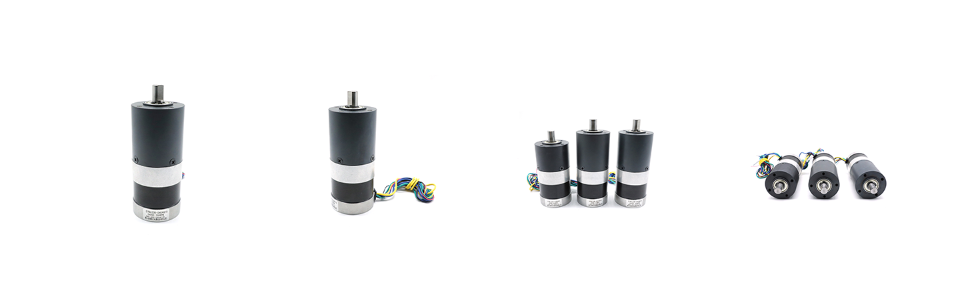

57BL03B-041AG26

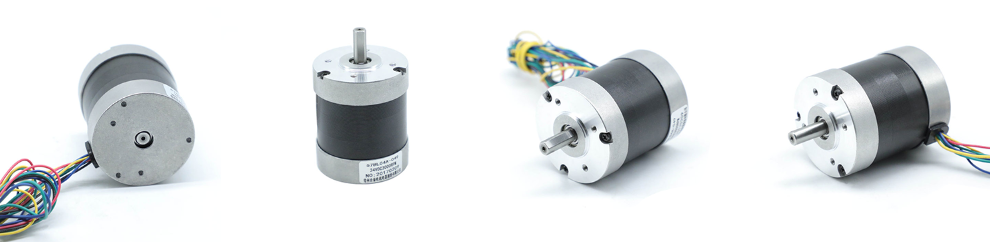

57BL04A

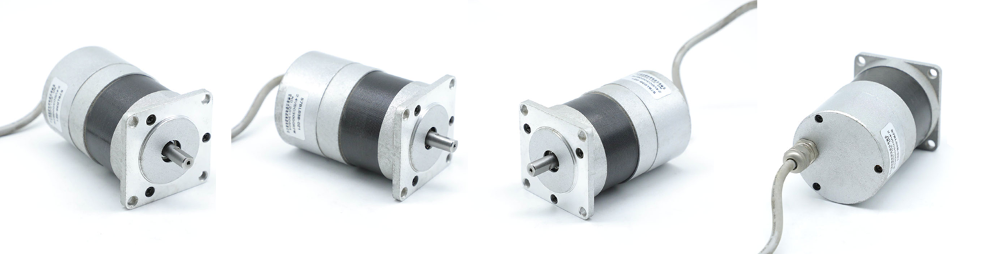

驱动一体式57BL03B-021
