Inquire Now Contact Us| 绕线接法 | Winding Type | Star |
| 霍尔角度 | Hall effect angle | 120° Electrical anglel |
| 绝缘等级 | Insulation Class | B |
| 环境温度 | Ambient Temperature | -20℃~+50℃ |
| 绝缘电阻 | Insulation Resistance | 100MΩ Min.500 VDC |
| 绝缘强度 | Dielectric Strength | 600VAC 1 minute |
| 最大径向负荷 | Max Radial Force | 28N (10mm from front flange) |
| 最大轴向负荷 | Max Axial Force | 10N |

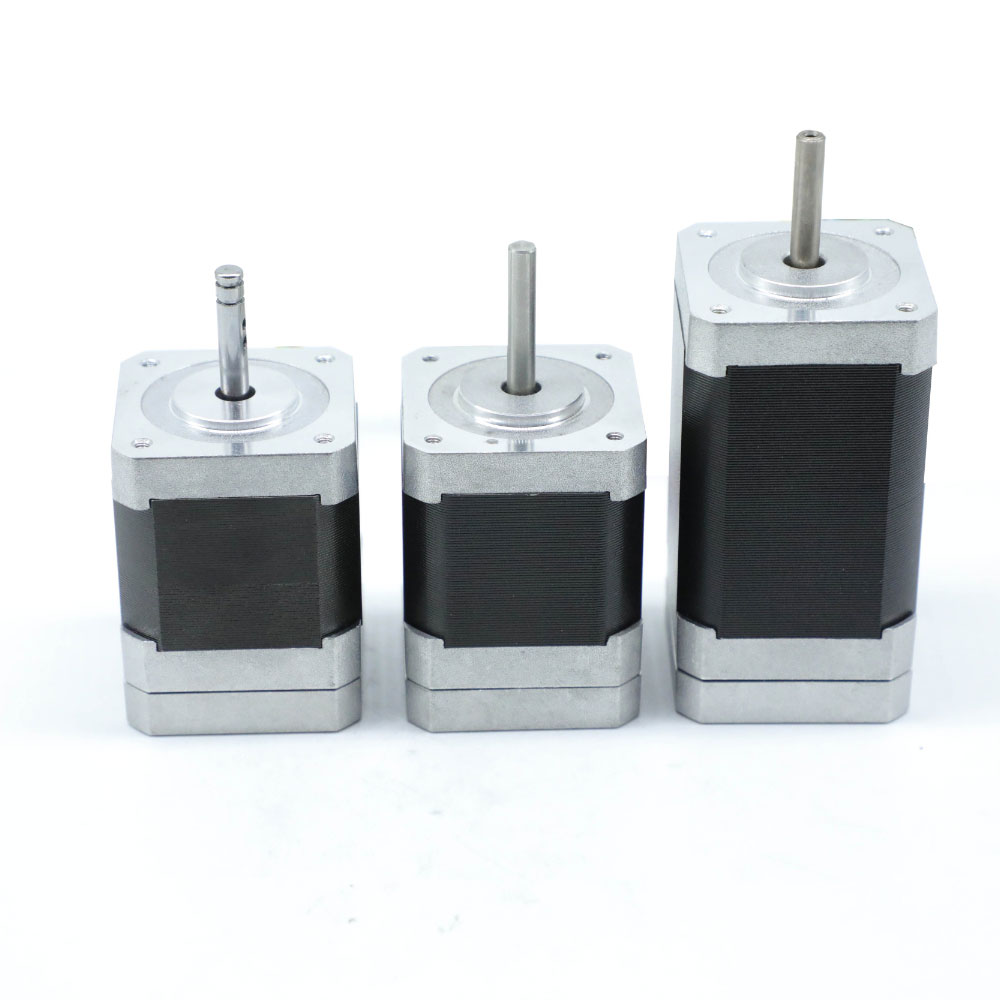

| Model | Poles | Phases | Rated Voltage(VDC) | Rated Torque(N.M) | Rated Speed(RPM) | Rated Current(Amps) | Output Power(Watts) | Peak Torque(N.M) | Peak Current(Amps) | Torque Constant(N.M/Amps) | Back EMF Constant(V/kRPM) | Body Length (mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42BLF01 | 8 | 3 | 24 | 0.063 | 4000 | 1.50 | 26 | 0.189 | 4.5 | 0.042 | 4.4 | 47 | 0.30 |
| 42BLF02 | 8 | 3 | 24 | 0.130 | 4000 | 3.10 | 54 | 0.390 | 9.3 | 0.042 | 4.4 | 63 | 0.45 |

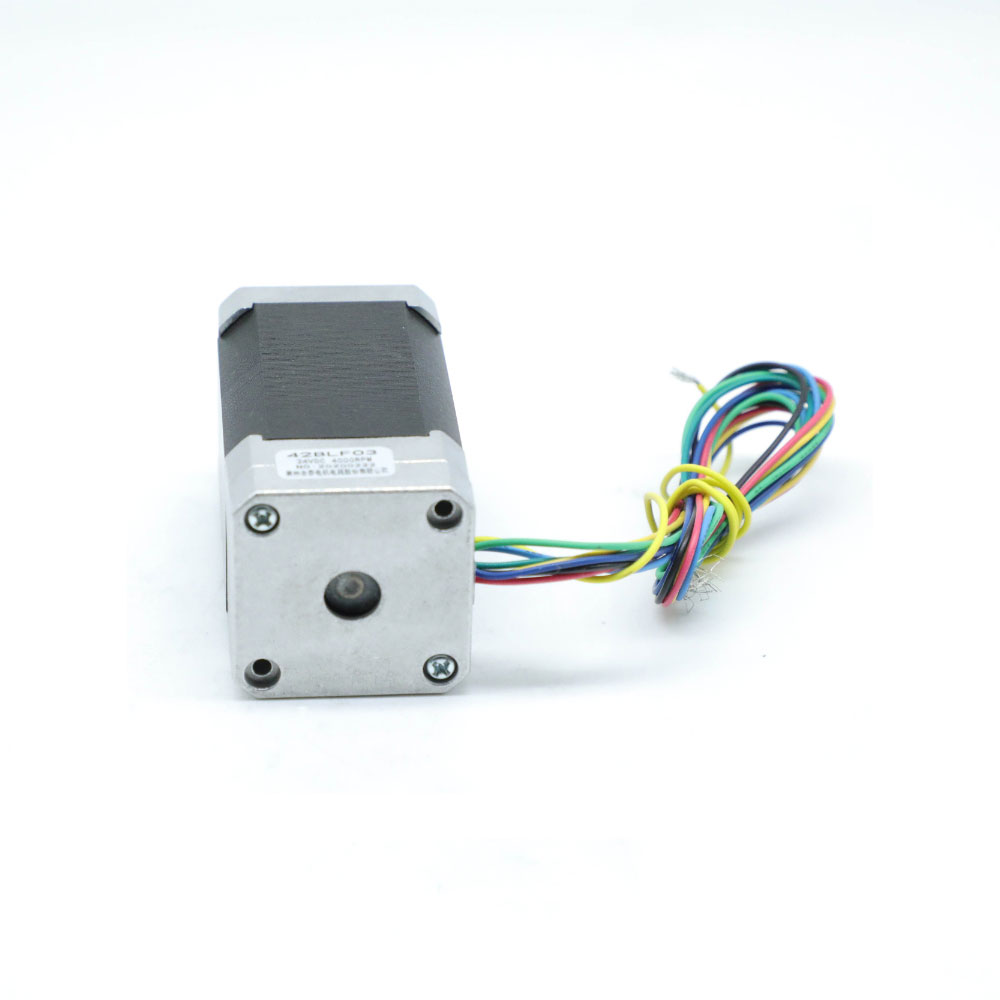

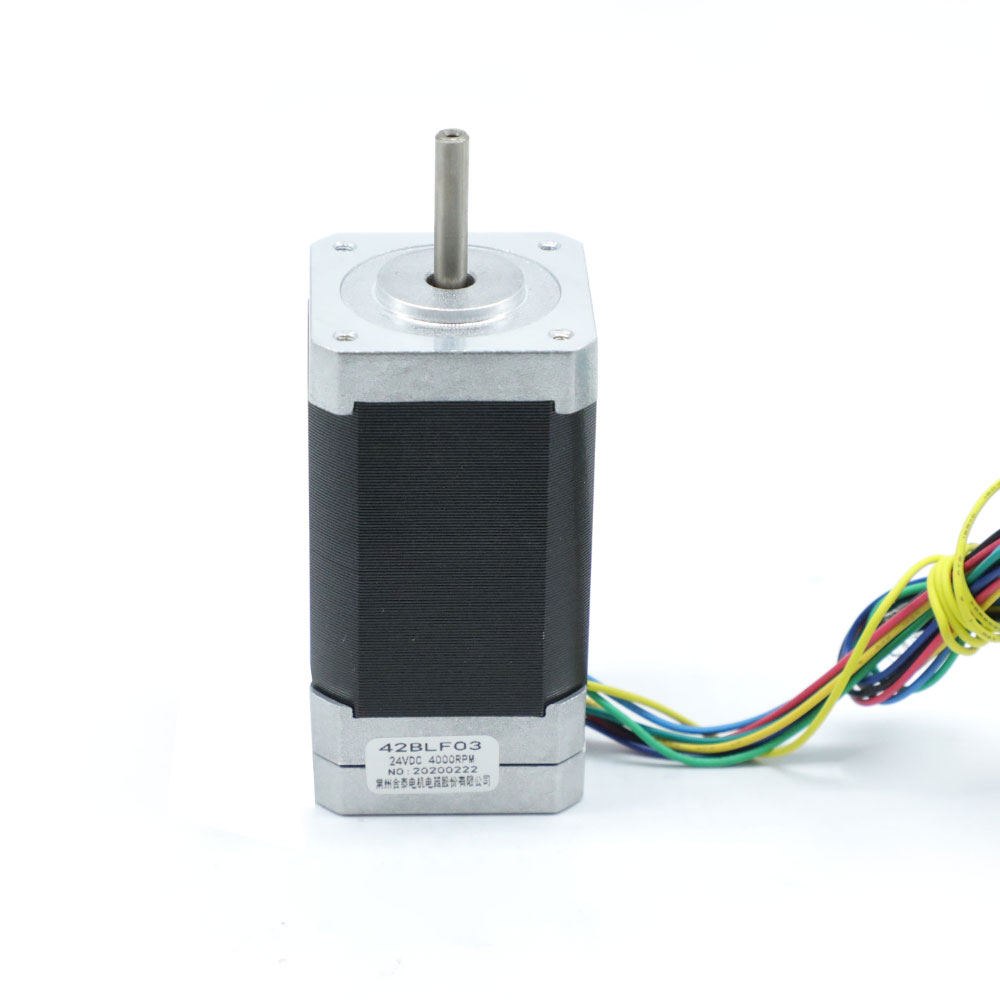

| 42BLF03 | 8 | 3 | 24 | 0.188 | 4000 | 4.17 | 78 | 0.560 | 12.5 | 0.045 | 4.8 | 79 | 0.60 |
*The above are representative products; derivative products can be customized according to customer requirements.
*This product is compatible with 36,42,56 gear reducers.
42BLF05A
